Your fluorspar ore is complex and full of impurities. Choosing the wrong process wastes money and lowers recovery. I will show you how to select the right technology. The best fluorspar processing method combines crushing, grinding, and flotation. For specific ores, gravity, magnetic, or manual separation can be added to improve efficiency and reduce costs. The key is to match the technology to your ore’s unique characteristics to achieve the best results.
Choosing the right processing path is the most important decision you will make. Leveraging years of experience, I have seen that success is not about buying the most expensive machines. It is about understanding your specific ore and designing a smart, efficient system around it. A well-designed plant, even with a modest budget, will always outperform a poorly planned one with advanced equipment. Let’s look at each stage in detail. I will help you understand the purpose of each step and how to make the right choices for your operation.
Big rocks are useless for separation. You must break them, but breaking them too much creates fine dust that can ruin your entire process. This is a delicate balance. Crushing reduces large fluorspar ore into smaller, manageable sizes for the next stages. The main goal is to prepare the ore for grinding while avoiding over-crushing, which creates excessive fine particles and harms later separation processes, especially flotation.
In my experience, the crushing stage sets the foundation for your entire plant’s profitability. Fluorspar is a relatively brittle mineral. If you use too much force or the wrong type of crusher, you will create a lot of “fines” or dust. This is a huge problem. These fine particles are difficult to handle in the subsequent flotation stage. They consume large amounts of expensive chemical reagents and reduce the recovery rate of your valuable fluorspar. The guiding principle here should always be “more crushing, less grinding.” This means you should use a multi-stage crushing circuit to gradually reduce the size of the ore. This approach minimizes the creation of fines and saves significant energy costs in the grinding stage, which is often the most energy-intensive part of the plant. A typical setup involves a primary Jaw Crusher for the largest rocks, followed by a secondary Cone Crusher or Impact Crusher for finer reduction. Investing in a proper Stone Crushing Plant design from the start pays for itself many times over.
Cone Crusher

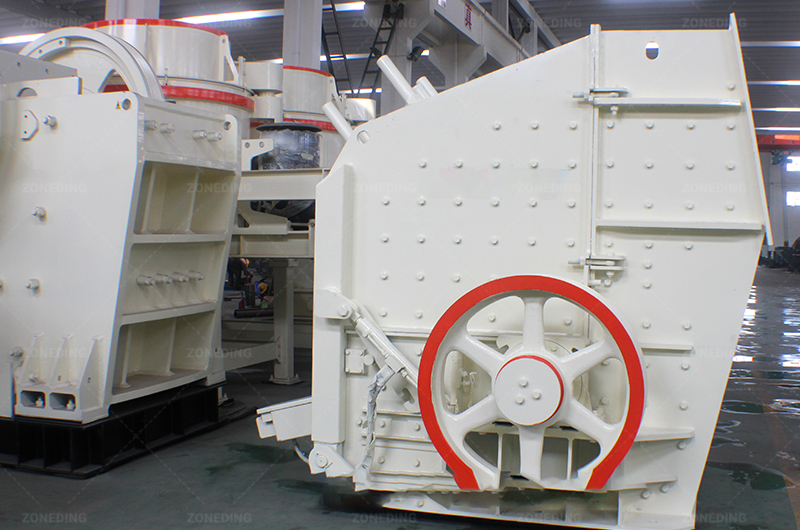

Impact Crusher
Jaw Crusher
Crusher Selection for Fluorspar
Crusher Type
Best For
Key Advantage
Jaw Crusher
Primary Crushing (Large Rocks)
High crushing ratio, simple structure, reliable.
Cone Crusher
Secondary/Tertiary Crushing
Produces uniform, cubical particles with fewer fines.
Impact Crusher
Secondary Crushing
Excellent particle shape, but higher wear on brittle materials.
How Do You Liberate Fluorspar Without Turning It into Dust?
Your valuable fluorspar is locked inside worthless rock. You must grind it to set it free. But grinding it too fine is a costly mistake that creates useless slime. Grinding liberates fluorspar minerals from the surrounding gangue by reducing particle size. Using a Ball Mill, the goal is to achieve optimal liberation without over-grinding, which creates slime and complicates flotation, ensuring maximum mineral recovery.
After crushing, the fluorspar is still physically attached to waste minerals like quartz and calcite. The purpose of grinding is to break these connections, a process we call liberation. The size to which you grind the ore is absolutely critical. If you don’t grind fine enough, the fluorspar and waste will remain attached, and you won’t be able to separate them. If you grind too fine, you create slime. This slime is the enemy of good flotation. It consumes reagents, makes the pulp thick, and carries away valuable minerals into the tailings. The key is to conduct laboratory tests to find the “sweet spot” for your specific ore. We call this the optimal liberation size. To achieve this precisely, we use a closed-circuit grinding system. This system combines a Ball Mill or Rod Mill with a classifier, such as a Spiral Classifier or a Hydrocyclone. The classifier separates correctly sized particles and sends them to the next stage, while oversized particles are sent back to the mill for more grinding. This ensures you are not over-grinding material that is already liberated.
Fluorspar
Fluorspar
Grinding Finess and Its Impact
Grinding Level
Liberation Status
Flotation Performance
Under-Grinding
Incomplete liberation
Poor recovery, low concentrate grade.
Optimal Grinding
Sufficient liberation
High recovery, high concentrate grade.
Over-Grinding
Creates slime
Poor recovery, high reagent consumption.
Why is Flotation the Most Important Method for Fluorspar?
You have a powder mix of fluorspar and waste. How do you separate them? The wrong chemical recipe means you lose valuable product directly to the waste pile. Flotation is the core technology for fluorspar beneficiation. It uses chemical reagents to make fluorspar particles attach to air bubbles and float, separating them from gangue minerals like calcite and quartz, which sink. This is the most effective method for producing high-grade concentrate.
Flotation is where the real magic happens. It is by far the most widely used method for concentrating fluorspar. The process works by changing the surface properties of the minerals. We add specific chemicals, called reagents, into a water-based slurry in large tanks called Flotation Machines. A collector reagent attaches only to the surface of the fluorspar particles, making them water-repellent. Then, we pump air through the slurry. The water-repellent fluorspar particles stick to the air bubbles and float to the surface, forming a froth that we can skim off. The waste minerals, like quartz and calcite, do not float and remain at the bottom. The biggest challenge in fluorspar flotation is often the presence of calcite, which has very similar flotation properties to fluorspar. To solve this, we must use a depressant, like sodium silicate (water glass), to suppress the calcite and prevent it from floating. The precise control of the reagent mixture, which is prepared in Mixer tanks, and the pH of the slurry are critical for success. This is why a well-designed Beneficiation Equipment flowsheet is essential.
Flotation Process Flow
Key Reagents in Fluorspar Flotation
Reagent Type
Example
Function in the Process
Collector
Fatty acids (e.g., oleic acid)
Makes fluorspar surfaces water-repellent.
Depressant
Sodium Silicate (Water Glass)
Suppresses gangue minerals like calcite and quartz.
pH Modifier
Soda Ash
Adjusts the slurry’s pH to the optimal level for separation.
Frother
Pine Oil, MIBC
Creates stable bubbles for the fluorspar to attach to.
How Can You Lower Costs with Gravity and Magnetic Separation?
Flotation is effective but can be expensive. If you want to reduce the load on your flotation circuit and save money, there are simpler pre-treatment methods. Gravity and magnetic separation are often used as cost-effective pre-concentration steps. Gravity methods like jigging separate coarse fluorspar based on density, while magnetic separation removes iron-based impurities, reducing costs and improving the efficiency of the main flotation circuit.
While flotation is the primary method, you should not overlook older, simpler technologies that can save you a lot of money. This is especially true if your ore has certain characteristics. Gravity separation works when there is a significant density difference between fluorspar and the waste rock. If your ore contains coarse fluorspar particles, you can use a Jigging Separator Machine or a Spiral Chute to remove a large portion of the lighter waste rock before grinding. This is called pre-concentration. By doing this, you reduce the amount of material that needs to be ground and floated, which directly translates to lower energy and reagent costs. For finer particles, a Shaking Table can produce a very clean separation. Similarly, if your fluorspar ore contains magnetic impurities like magnetite or hematite, installing a Magnetic Separator before flotation can easily remove them. This improves the final grade of your fluorspar concentrate and makes the flotation process run more smoothly. These methods are low-cost, use very few chemicals, and are environmentally friendly.
When to Use Pre-Concentration Methods
Method
Best Used When…
Main Benefit
Gravity Separation
Ore has coarse particles and a high density difference.
Reduces grinding and flotation costs.
Magnetic Separation
Ore contains magnetic impurities like iron oxides.
Improves final concentrate grade and purity.
Manual Separation
High-grade lumps are visible and easily separable.
Low-cost pre-sorting for small operations.
How Do You Combine These Methods into a Profitable Plant?

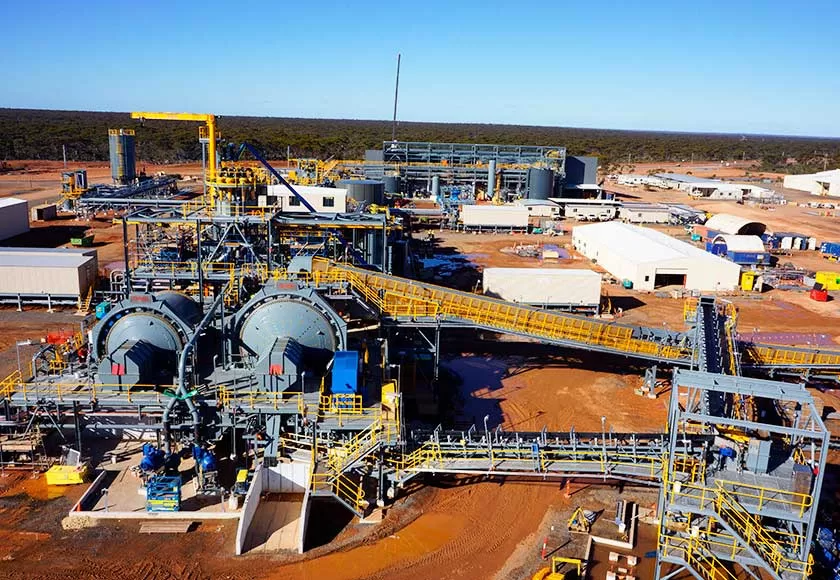

You know the individual machines. But putting them together incorrectly can lead to a disaster. How do you create a seamless, profitable system that actually works? A profitable fluorspar plant is a customized system, not just a collection of machines. It starts with ore testing to determine the best combination of crushing, grinding, flotation, and other methods to maximize recovery and minimize cost for your specific ore.
The final, and most important, lesson from my 50 years in this business is this: there is no such thing as a “standard” fluorspar plant. Every single profitable operation I have seen is based on a process that was custom-designed for its specific ore. The process starts with you. You must first have your ore properly tested. This tells us the mineral composition, liberation size, and what impurities we need to remove. Based on these test results, we design a unique flowsheet. For a simple ore with high-grade, coarse fluorspar, the flowsheet might be a simple circuit of crushing, grinding, and jigging. For a more complex, low-grade ore with calcite and iron impurities, the flowsheet could involve multi-stage crushing, grinding, magnetic separation, and a multi-stage flotation circuit. As a manufacturer, we provide a one-stop solution. We don’t just sell you machines; we partner with you to design the entire Manganese Ore Processing (or fluorspar) line, manufacture the equipment, and help with installation and training. This also includes crucial downstream equipment like a High Efficiency Concentrator to recycle water, which is vital for both cost savings and environmental compliance.
Sample Flowsheet for Quartz-Type Fluorspar Ore
Stage
Equipment
Purpose
1. Crushing
Jaw Crusher + Cone Crusher
Reduce ore size to < 20mm.
2. Grinding
Ball Mill + Spiral Classifier
Grind to optimal liberation size (e.g., -200 mesh).
