Ball Mill

What is a Ball Mill?

The ball mill is a crucial grinding device widely utilized across multiple industrial sectors, including cement, silicate products, novel construction materials, refractory materials, fertilizers, ferrous and non-ferrous metal ore dressing, as well as glass and ceramics manufacturing. Its fundamental operating principle lies in the utilization of grinding bodies within the mill cylinder (such as steel balls, rods, or other shaped media) that impact, compress, and grind the materials during rotational motion, effectively reducing them to the desired particle size.

A ball mill is a grinding machine designed to grind hard materials into a fine powder. It is a large horizontal cylinder that rotates on its axis. We fill the cylinder with the material you need to grind, along with a grinding media. This media is usually made of hard steel or ceramic balls. As the cylinder turns, the balls are lifted and then fall, crushing and grinding the material trapped between them. This process is very effective for creating a uniform, fine product. It is a trusted technology that has been used for many decades in demanding applications.

What is a Ball Mill Used For?

Ball mill  is perfect when you need to turn a crushed material into an extremely fine powder. Its main job is to reduce particle size down to the micron level. This makes it an essential tool for processes where the final product’s quality depends on its fineness. A primary example is in a cement plant, where a cement mill is to grind clinker. The ball mill for cement grinding is crucial for achieving the correct fineness. Other major uses include the mining industry, where it frees valuable minerals from ore, and the ceramics industry, for preparing raw materials.

How Does A Ball Mill Work?

The working principle of a ball mill is simple but effective. It relies on impact and attrition. First, you feed the material into the hollow cylinder. Inside, hard grinding balls fill about 30-40% of the space. A powerful motor makes the cylinder rotate. The rotation lifts the balls and the material up the side of the shell. When they reach a certain height, gravity makes them fall. This cascading motion creates a powerful crushing force. The impact of the balls breaks down coarse particles. At the same time, the rubbing action between the balls, liners, and material grinds everything even finer. The fine powder then exits the mill.

Why Choose a Ball Mill for Your Grinding Application?

You should choose a ball mill because it is incredibly versatile and reliable for fine grinding. It can handle a wide range of materials, from very hard ores to softer chemicals. A key advantage is its ability to operate in both wet and dry conditions, making it suitable for many different processes. The ball milling process produces a very consistent and fine product, which is often a strict requirement. These machines are also very robust. They are built for continuous, heavy-duty operation with a simple design that is easy to maintain. This combination of effectiveness, flexibility, and durability makes the ball mill a superior choice for many grinding tasks.

Advantages of ball mill

• High crushing efficiency: The ball mill uses the collision and friction between the grinding ball and the material to crush. It has high crushing efficiency and can obtain finer powder.
• Wide scope of application: Ball mill is suitable for crushing and grinding various materials, including metals, non-metals, ores, ceramics, etc.
• Simple operation: The operation of the ball mill is relatively simple. You only need to put the materials into the mill, add an appropriate amount of grinding balls and water or other media, and then start the equipment.
• Large output: The ball mill can produce continuously and has a large output, which can meet the needs of large-scale industrial production.
• Simple structure and easy maintenance: The ball mill has a relatively simple structure and is easy to maintain . At the same time, its sturdy and durable design also ensures its service life.

The structure of ball mill

The structure of ball mill mainly consists of cylinder, end caps, bearings, big gear, feeding device, discharging device, and grinding media (such as steel balls or ceramic balls) inside.

Its working principle is that the material enters the cylinder through the feeding device, and the cylinder rotates driven by the transmission device. The grinding media inside the cylinder subject the material to intense impact and friction due to centrifugal force and friction, crushing and grinding the material. After a certain period of time, the material grinded to the desired particle size is discharged through the discharging device.

What are the types of ball mills?

There are several types of mills used for grinding, but ball mills are a major category. Within ball mills, the main difference is how they discharge the material. This choice affects the efficiency and the final product. The two most common types are the grate type and the overflow type. The grate type has a slotted diaphragm at the end, which controls the size of the exiting material and prevents over-grinding. The overflow type is simpler; the material slurry flows out once it reaches a certain level. At ZONEDING, we help you choose the best type for your specific needs, whether it’s a ceramic ball mill or a large mining mill.

• Based on different grinding methods, ball mills can be classified into dry and wet types. Dry ball mills are mainly suitable for grinding dry materials, while wet ball mills are suitable for grinding materials that require water or other liquids.

• According to the shape of the cylinder, ball mills can be divided into short cylinder type, long cylinder type, and tube mill, etc. Short cylinder ball mills are mainly for rough grinding, while long cylinder ball mills are suitable for fine grinding and ultra-fine grinding.

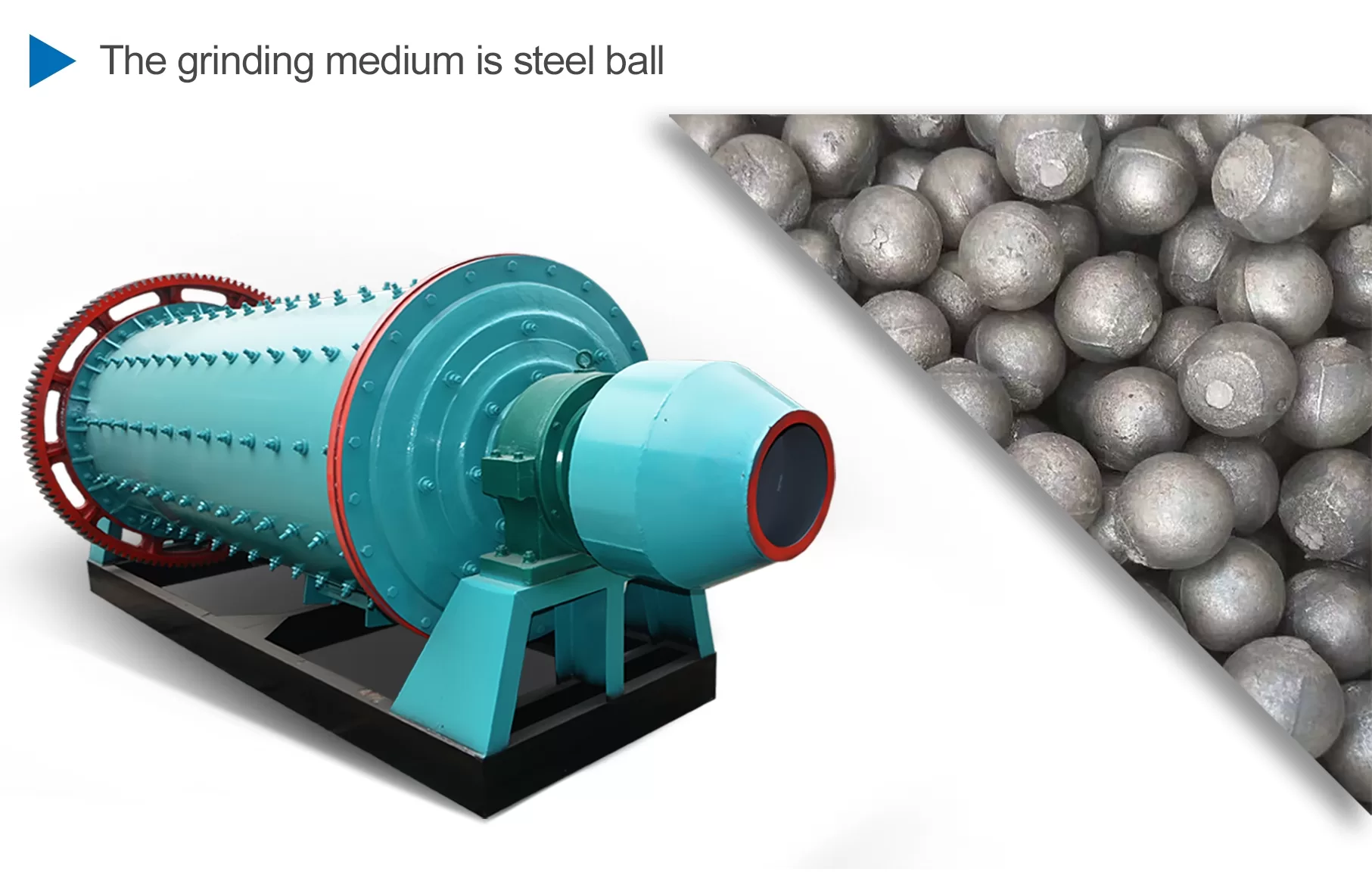

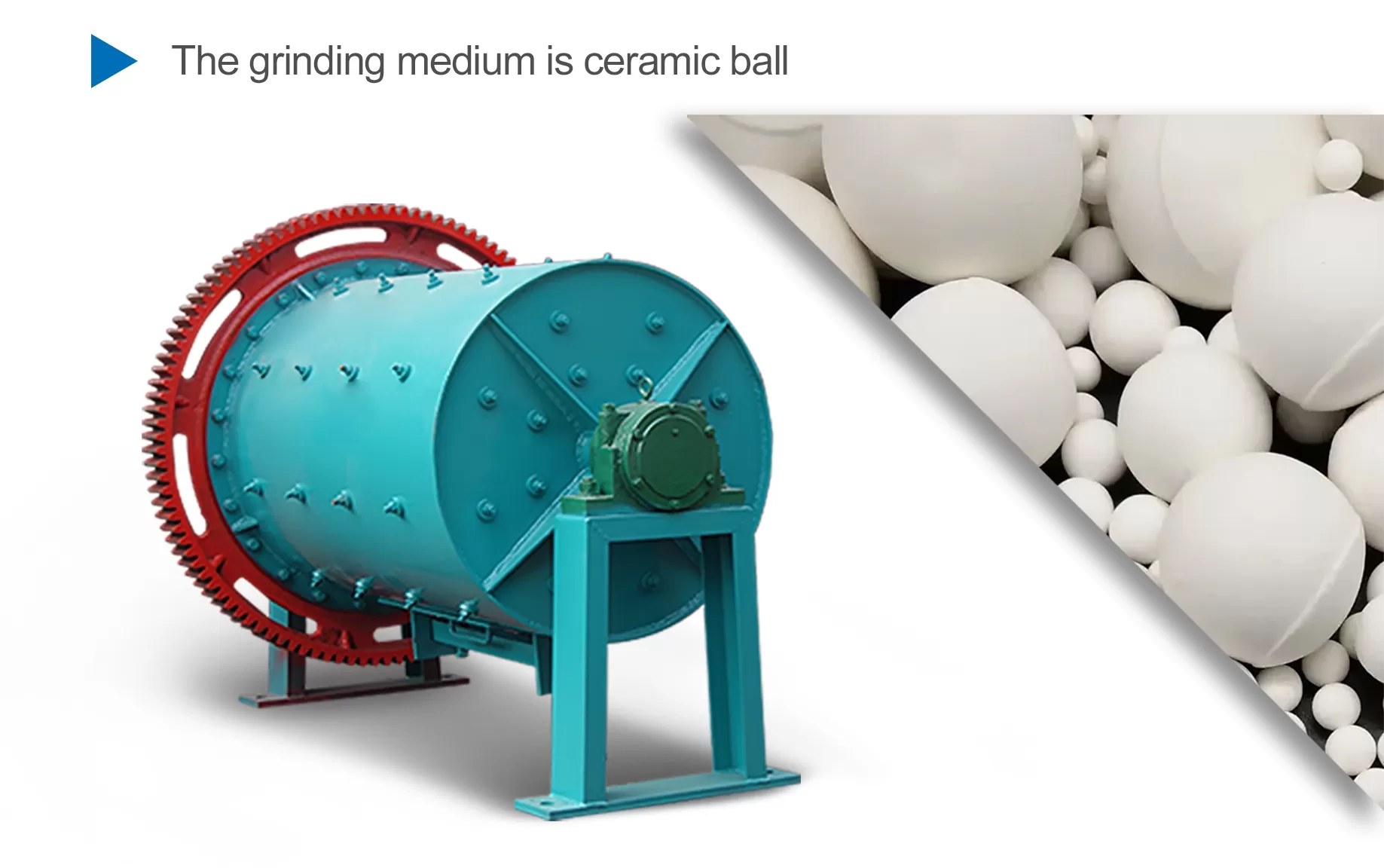

• Based on different grinding media, ball mills can be classified into steel ball mill, gravel mill, and rod mill, etc. Steel ball mills use steel balls as grinding media, gravel mills use gravel or pebbles as grinding media, and rod mills use steel rods as grinding media.

What are Features of Ball Mill?

A modern ball mill has features designed for high performance and long life. The main body, or shell, is made from thick, high-strength steel plates. Inside, the shell is protected by replaceable wear-resistant liners. These liners are not just for protection; they have lifter bars that are crucial for lifting the grinding media efficiently. The drive system is powerful and reliable, consisting of a large girth gear, a pinion, a gearbox, and a high-efficiency motor. Our mills at ZONEDING also feature robust, oversized bearings to support the heavy rotating load smoothly. These features ensure that the ball mill machine can run continuously for long periods with minimal issues.

How Much Price of Ball Mills?

The price of a ball mill varies greatly. A small, simple ball mill homemade for a lab might be inexpensive, but an industrial ball mill can cost from tens of thousands to over a million dollars. The final price depends on its size, capacity, construction materials, and brand. However, the initial purchase price is only part of the story. You must also consider the total cost of ownership. This includes major ongoing costs like energy consumption and replacing the grinding media in ball mill. At ZONEDING, we focus on efficiency to lower your energy bills. We also use high-quality components to reduce maintenance needs, which saves you money in the long run.

What Materials Can Be Processed in a Ball Mill?

A ball mill grinder is very versatile and can process a huge variety of materials. Its powerful grinding action works on both hard and soft substances. In the mining industry, it is used to grind ores like gold, copper, iron, and lead. For construction materials, it is essential for grinding cement clinker, slag, and limestone. The chemical industry uses it to produce fine powders of pigments, fertilizers, and other compounds. It is also a key machine in the ceramics industry, where it grinds raw materials like quartz, feldspar, and clay. This flexibility makes the ball mill a fundamental tool for many material processing operations.

What are the Key Components of a Ball Mill?

Understanding the key components of a ball mill helps you appreciate its robust design. The main part is the rotating shell, a large steel cylinder. Inside the shell are liners, which are replaceable plates that protect the shell from wear. These liners have lifter bars that play a critical role in lifting the grinding media. Worn lifter bars can seriously reduce the mill’s efficiency. The ball mill media consists of steel or ceramic balls that do the actual grinding. At each end are trunnions, which are hollow shafts that allow material to enter and exit. These trunnions are supported by large bearings. Finally, the drive system provides the power to turn the mill.

How to Choose Suitable Ball Mill Machine?

Choosing the right ball mill machine is crucial for your operation’s success. You need to consider several factors to make the right choice. First, think about your material. What is its hardness and abrasiveness? Next, determine your production needs. What is your required capacity in tons per hour? You also need to know the starting feed size and the final particle size you want to achieve. Another important decision is whether you need a wet or dry grinding process. Calculating the right size and power is complex. It is best to consult with experts. At ZONEDING, our engineers can help you analyze your needs and recommend the perfect ball mill for sale.

How Does Grinding Media Affect Milling Performance?

The grinding media is the heart of the ball milling process. The type, size, and amount of media, or balls, have a huge impact on performance. The material of the balls is important. High-chromium steel balls are used for most applications due to their toughness. Ceramic balls are used when you need to avoid iron contamination. The size of the balls also matters. You use larger balls to break down coarser feed material. You use smaller balls to achieve a very fine final product. Often, a mix of different sizes is best. Maintaining the correct ball charge, which is the total volume of balls in the mill, is essential for keeping the grinding mill running at peak efficiency.

What are the Advantages of Wet vs. Dry Grinding?

You can use a ball mill for both wet and dry grinding, and each method has its advantages. Wet grinding, where you add water to create a slurry, is generally more efficient. It uses less energy per ton of material and helps to keep dust down. It is the preferred method in most mineral processing plants. Dry milling, on the other hand, is necessary when the final product cannot be wet, such as in cement production. While it can be less efficient and requires robust dust collection systems, it is essential for certain applications. The choice between wet and dry mill grinding depends entirely on your process requirements and the nature of your final product.

What are the Factors Affecting Ball Mill Performance?

Several factors control how well your ball mill grinder performs. To get the best results, you need to manage these variables carefully. The speed of the mill is critical; it usually runs at 65-75% of its “critical speed” for optimal grinding. The ball charge, including the volume and size of the balls, must be right for the job. The characteristics of your feed material, like its size and hardness, also play a big role. One often-overlooked factor is the moisture content of the feed. Too much moisture can cause material to stick to the liners, while too little can create excessive dust. Properly controlling these factors will maximize your ball mill mining or industrial output.

How to Control Particle Size Distribution?

Controlling the final particle size is the main goal of using a ball mill. The best way to do this is by operating the mill in a closed circuit with a classifier. In this setup, the material exits the mill and goes to a classifier, like a hydrocyclone for wet grinding or an air classifier for dry grinding.

The classifier separates the material. The fine particles that meet your size requirements are sent to the next stage of your process. The oversized, coarse particles are sent back to the mill for another round of grinding. This closed-loop system gives you very precise control over the final product size and ensures that the ball and mill are working as efficiently as possible.

What are Common Problems and Troubleshooting for Ball Mills?

Even though ball mills are very reliable, they can have problems. Common issues include excessive wear on liners and grinding media, and blockages at the feed or discharge points. Sometimes, the bearings can overheat due to lubrication problems. One of the best troubleshooting tools is listening to the mill. An experienced operator can tell a lot from the sound. A smooth, deep rumbling is good. Loud banging could mean broken liners or an issue with the feed. A sudden quietness might mean the mill is clogged. Training your team to recognize these sounds is a simple but powerful way to catch problems early.

What Maintenance is Required for a Ball Mill to Ensure Longevity?

Proper maintenance is key to a long and productive life for your ball mill. A regular maintenance schedule is not optional; it is essential. The most important task is lubrication. The main bearings and drive gears are under immense pressure and need constant, high-quality lubrication. You should also regularly inspect the inside of the mill for wear on the liners and lifter bars. Monitor the ball charge level and remove any broken balls. For safety, especially in dry milling of combustible materials, you must have excellent dust control to prevent explosions. Regular vibration and oil analysis can also help detect problems before they cause a major failure.

mobile ball mill

The mobile ball mill has the characteristics of convenient transportation and usage in different sites. Compared with the traditional fixed-position ball mill, it is more flexible in use. It is suitable for operations such as ore grinding and building material processing in different sites, which can improve production efficiency and reduce material transportation costs and time.

Hot selling ball mill models

If you are interested in ball mill, please feel free to contact us! We will provide you with more than two solutions for you to choose from.

What are the Latest Advancements in Ball Mill Technology?

Ball milling technology continues to evolve. Modern advancements are focused on making the process more efficient, automated, and safer. Many new mills now come with advanced automation systems. These systems use PLCs and sensors to monitor the mill’s operation and automatically adjust the feed rate to keep it running at its most efficient point. Variable Speed Drives (VSDs) are another key innovation. They allow you to change the mill’s speed to optimize it for different materials, which can save a lot of energy. There are also improvements in liner materials and designs that extend their life and improve the grinding action.

What are the Applications of Ball Milled Materials?

The materials produced by a ball mill are used in countless applications across many industries. In construction, the fine cement powder is the key ingredient in concrete. In the paint industry, pigments are ground in a rotary ball mill to a super-fine consistency to ensure smooth application and vibrant color. In mining, the finely ground ore allows for the efficient extraction of valuable metals like gold and copper. A unique application is mechanochemical activation. By carefully controlling the milling, you can use the intense energy inside the mill to cause chemical reactions, creating new advanced materials. This shows that the ball mill is more than just a grinder.

FAQ

What is the difference between a ball mill and a rod mill?
The main difference is the grinding media. A ball mill uses spherical balls for fine powder grinding. A rod mill uses long steel rods and is used for coarser grinding, producing a more uniform product size with fewer ultra-fines.
What is the “critical speed” of a ball mill?
Critical speed is the rotational speed at which the grinding media would just stick to the inside of the shell due to centrifugal force. Ball mills operate at about 65-75% of critical speed to achieve the best cascading and grinding action.
Can a ball mill be used for wet and dry grinding?
Yes, ball mills are very versatile and can be used for both. Wet grinding is generally more efficient for mineral processing. Dry milling is necessary for materials like cement, where adding water is not an option.
How do you choose the right size of grinding balls?
The size of the ball mill balls depends on the feed material size and the desired product fineness. You use larger balls for breaking down coarser feed and smaller balls for producing a very fine powder. A mixed charge of different sizes is often most effective.
