Magnetic Separator is used to efficiently separate magnetic particles from non-magnetic materials in mineral processing, featuring a rotating drum design and customizable magnetic field strength for high-purity separation.
Feed size: ≤3mm
Capacity: 0.5-180 t/h
Application: Commonly used for wet magnetic separation of pyrite, magnetite, ilmenite, manganese, iron ore, limonite and other materials with particle size below 3mm.
A magnetic separator uses magnetic force to separate materials based on their magnetic properties. It’s used across many industries to remove iron or purify materials. The process itself is called magnet separation. The Wet Drum Magnetic Separator is a commonly used magnetic separation equipment, primarily employed in mineral processing to separate ferromagnetic materials from non-magnetic substances through the action of a magnetic field. This equipment is particularly suitable for processing finely grained minerals, and the presence of water enhances the efficiency of the magnetic separation process. It is necessary to improve your mineral processing with a magnetic separator. Understanding the basics is key to choosing the right magnetic separation equipment for your needs. Whether you need an iron remover or a way to refine your mineral output, this guide covers everything from types to maintenance, helping you make informed decisions about magnetic separation.
Optimizing magnetic separation in mineral processing, knowing whether to use a dry magnetic separator or a wet magnetic separator can make a big difference on your magnetic separation efforts.

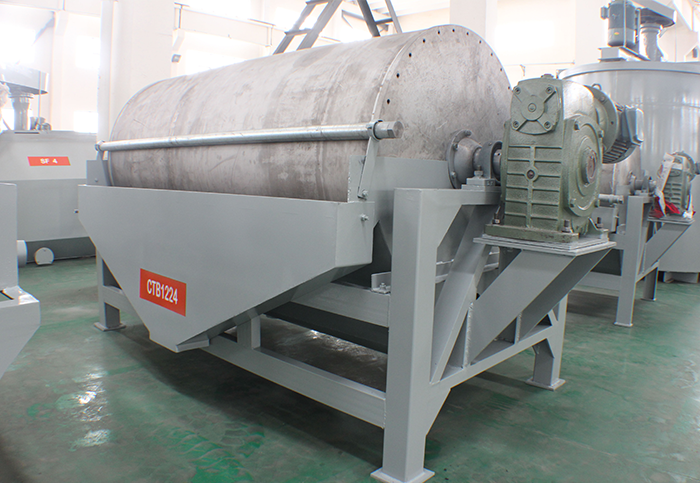

Wet Drum Magnetic Separators typically consist of a magnetic drum, transmission system, tank, feeding device, and discharge device. The magnetic drum, a crucial component, is equipped with high-performance permanent magnets or electromagnets that generate a powerful magnetic field. The tank holds the pulp, while the feeding device evenly distributes the pulp into the magnetic separator. The discharge device is responsible for removing the separated minerals.
Structure of Wet Drum Magnetic Separator
A magnetic drum separator includes a rotating drum with magnets inside, a housing, and a feeding system. The drum’s surface attracts magnetic particles, separating them from non-magnetic materials. These separators often use a permanent magnetic drum to generate the necessary field.
Drum：The drum is a cylindrical shell, made from non-magnetic material. It rotates to move materials through the magnetic field.
Magnets:Permanent magnets, usually arranged in a fixed position inside the drum, create a magnetic field that attracts magnetic particles. The magnet separation process happens as these particles stick to the drum. This is a common setup for a magnetik separator.
Housing：The housing encloses the drum and magnets. It directs the flow of material and collects the separated fractions. Keeping the housing clean is important for maintaining optimal performance of the magnetic seperator.
How does a Magnetic Separator Work?
About Magnetic Separators Workprinciple, you can check following infos.
A magnetic separator uses a magnetic field to attract magnetic materials, separating them from non-magnetic ones. The magnetic materials stick to the separator, while non-magnetic materials pass through. The effectiveness of a mag separator depends on several factors.
Feeding： Material is fed onto the separator, usually through a conveyor or feeder. Even feed distribution is important for good separation.
Separation： As the material passes through the magnetic field, magnetic particles are attracted and held to the surface. This magnetic separation in mineral processing ensures only magnetic materials are captured. A well-designed separation magnetique is key to efficiency.
Discharge：The magnetic particles are moved out of the magnetic field. They are then discharged separately from the non-magnetic materials.
What are Types of Magnetic Separators?
Types include dry magnetic separator and wet magnetic separator, drum separators, belt separators, and high-gradient magnetic separators (HGMS). Each is designed for specific separation tasks, whether you’re dealing with magnetic dirt separator needs or high-purity requirements.
Dry Magnetic Separators：Dry magnetic separators are used for separating dry materials. They’re common in mining and recycling, perfect for materials that don’t clump together.
Wet Magnetic Separators：Wet magnetic separators are designed for slurries and liquids. These are useful in mineral processing and wastewater treatment, where materials are already suspended in a liquid.
High-Gradient Magnetic Separators (HGMS)：HGMS are used to separate weakly magnetic particles. They are often found in specialized applications. In high-gradient magnetic separators (HGMS), the matrix material (e.g., steel wool, expanded metal) creates a high magnetic field gradient, allowing for the capture of even weakly magnetic particles. The matrix material must be carefully selected to provide a high surface area and a high magnetic field gradient.
Commonly Used Equipment in Magnetic Separation Process?
Common equipment includes feeders, conveyors, screens, and collection systems. These work together to create an efficient separation process. It’s a system designed for optimal magnetische separation.
Feeders：Feeders control the rate at which material enters the separator. Consistent feed rate is key to good separation.
Conveyors：Conveyors move materials between different stages of the process. They help maintain a steady flow. Sometimes a magnetic separator conveyor is integrated into the system.
Screens：Screens classify the material by size. This ensures that the separator works most effectively. The effectiveness of magnetic separation is highly dependent on the particle size distribution of the feed material. Neglecting to properly classify the feed material before magnetic separation can lead to poor performance, particularly with fine particles. Fine particles can agglomerate and become difficult to separate, while coarse particles may not be effectively captured by the magnetic field.
Advantages of Magnetic Separator Tool?
Advantages include efficient separation, reduced labor costs, and improved product purity. It can also recover valuable materials from waste. Using a magnet splitter effectively can enhance these advantages.
Efficiency：Magnetic separators can process large volumes of material quickly. This makes them more efficient than manual separation methods.
Cost Savings：By automating separation, labor costs are reduced. This can lead to significant savings over time.
Purity：Magnetic separators can remove unwanted magnetic contaminants, improving the purity of the final product. Higher magnetic field strength isn’t always better; it can actually reduce selectivity in some cases. Overly strong fields can entrain non-magnetic particles, contaminating your concentrate. A very strong field can attract even weakly paramagnetic particles, overwhelming the system’s ability to differentiate. This is especially important in applications with magnetic separation examples where precision is key.
Applications of Magnetic Separation Equipment?
It’s used in mining, recycling, food processing, and wastewater treatment. Each industry benefits from its ability to separate materials efficiently. It is also used in magnetic separators for the ceramics industry.
Mining：In mining, it separates valuable minerals from waste rock. This helps to concentrate the ore. This is crucial for any magnetic mining operation.
Recycling：In recycling, it removes ferrous metals from waste streams. This allows for the recovery of valuable materials.
Food Processing：In food processing, it removes metal contaminants from food products. This ensures food safety. You can find magnetic separators in food processing facilities around the world.
Work Principle of Wet Drum Magnetic Separator
The working principle of the Wet Drum Magnetic Separator relies primarily on the attractive force of the magnetic field on magnetic substances. As the pulp flows into the tank and passes over the magnetic drum, magnetic materials are attracted to the drum’s surface due to the magnetic field, while non-magnetic substances flow away with the pulp. As the drum rotates, the magnetic materials attached to it are transported to the discharge area and removed via the discharge device. This process achieves the separation of magnetic and non-magnetic substances.
Principle of Wet Drum Magnetic Separator
Which Minerals Ore can be Separated by Magnetic Method?
Ores containing iron, nickel, and cobalt are easily separated. Others, like rare earth elements, require high-gradient magnetic separation.
Iron Ores：What ores are magnetic? Magnetite and hematite are common examples of magnetic mineral ores that are easily separated. The definition of magnetic separation is most clearly seen in these applications.
Nickel Ores：Pentlandite and pyrrhotite are nickel-containing ores that can be separated magnetically.
Cobalt Ores：Erythrite and cobaltite can be effectively separated using magnetic methods. You might ask, what mineral is magnetic? These cobalt ores provide a clear example.
What are Features of Magnetic Separators Machine?
Sturdy Construction: The separator is built to withstand abrasive materials and operate effectively in corrosive environments, ensuring durability and longevity.
Continuous Material Flow: Its rotating drum design facilitates a seamless flow of material through the magnetic field. This design efficiently captures iron particles, resulting in a high-purity final product.
Customizable Options: We offer customized equipment or adjustable magnetic field strength to cater to specific processing needs. This flexibility ensures optimal performance and maximum efficiency for a wide range of applications.
Versatile Sizes and Configurations: The drum magnetic separators are available in different sizes and setups, enabling high-volume material processing to meet diverse industrial requirements.
Why Choose a Magnetic Separator Equipment from ZONEDING?
ZONEDING offers a range of magnetic separators with features like high magnetic field strength, durable construction, and custom designs to meet specific needs. For mining magnets that last, choose ZONEDING.
High Magnetic Field Strength：Our separators use powerful magnets for efficient separation. Magnet Type: Choosing the Right Force. The type of magnet (permanent, electromagnet, superconducting) is the foundation of your separation and must match your application’s needs.
Durable Construction：Built with quality materials, our separators are designed to last. Corrosion Protection: Protecting Your Investment. Magnetic separators are often used in harsh environments, so corrosion protection is essential.
Custom Designs：We can customize our separators to fit your specific application. ZONEDING’s Customization Capabilities means we are able to customize equipment and production line solutions based on the specific needs of customers (such as material characteristics, output requirements, and site conditions).
How Much the Price of Magnetic Separator Cost?
The cost depends on factors like capacity, magnetic strength, and features. Contact us for a custom quote.
Factors Affecting Cost：Capacity, magnetic strength, and customization all impact the price. The desire to maximize throughput can lead to decreased recovery and a lower-quality concentrate, ultimately costing more in the long run.
Getting a Quote：Contact us with your specific requirements for a personalized quote. As a magnetic separator manufacturer, we can provide competitive pricing.
How to Choose Suitable Magnetic Separation Equipment?
Consider the material’s magnetic properties, particle size, and desired throughput. Also, think about whether you need a wet or dry magnetic separator.
Material Properties：Understand the magnetic properties of your material. Mineral magnet characteristics will determine the best separator type.
Application Needs：Consider your throughput requirements and space constraints. Feed Rate: The Art of Controlled Throughput. Feed rate directly impacts separation efficiency. Overloading reduces both recovery and grade.
Specification of Wet Drum Magnetic Separator
Model
Magnetic field intensity (oe)
Capacity (t/h)
Power (kw)
CTB600X900
1450
8-15
1.1
CTB600X1800
1500
15-25
2.2
CTB750X1800
1550
30-45
3
CTB900X1800
1650
35-60
4
CTB1050X2400
1650
60-95
5.5
CTB1200X3000
1650
80-150
7.5
CTB1500X3000
1650
120-200
11
Dry Separation vs. Wet Separation: Which is the right choice for your project?
Dry separation is suitable for dry, free-flowing materials. Wet separation is better for slurries and fine particles.
Dry Separation：Dry separation is cost-effective and simple for dry materials. Applications of Magnetic Separation Equipment can determine how to implement the best separation results for each project.
Wet Separation：Wet separation is more effective for fine particles and slurries. Types of Magnetic Separators should also be considered when choosing a separation plan.
How to Maintain your Magnetic Mining Separator?
Regularly inspect and clean the separator. Replace worn parts and ensure proper alignment to keep it running smoothly.
Inspection:Regularly inspect for wear and damage. The air gap between the magnet and the material being separated affects the magnetic field strength. The air gap should be minimized to maximize the magnetic field strength, but it must be large enough to prevent the material from clogging the separator.
Cleaning：Keep the separator clean to prevent build-up. Cleaning Mechanisms: Keeping the Separator Clear. Effective cleaning mechanisms (brushes, sprays, scrapers) are essential for removing captured magnetic particles and preventing build-up.
Tips on Magnetic Separator Operation on Mining Separation
Optimize feed rate, adjust magnetic field strength, and maintain proper cleaning to improve separation. Feed Distribution: Even Flow, Even Results. Uneven feed distribution across the separator leads to localized overloading and poor separation.
Feed Rate：Control the feed rate for optimal separation. Feed Rate: The Art of Controlled Throughput is key to magnetic separation.
Magnetic Field：Adjust the magnetic field strength to match the material. Magnet Type: Choosing the Right Force. The type of magnet (permanent, electromagnet, superconducting) is the foundation of your separation and must match your application’s needs.
What are New Trends for Magnetic Separation?
New trends include the development of more efficient magnets, improved separation techniques, and automation. What is a Magnetic Separator can lead to breakthroughs in magnetic separation.
Efficient Magnets：New magnet materials offer higher field strengths. The Magnet Type: Choosing the Right Force helps improve magnetic separation in new designs.
Improved Techniques：Advanced control systems optimize separation performance. Magnetic separation in mineral processing can be maximized with new techniques.
Why Choose ZONEDING?
We provide reliable magnetic separators tailored to your needs, backed by expert support and service.
Quality：Our separators are built to last. Built with quality materials, our separators are designed to last. Corrosion Protection: Protecting Your Investment.
Customization：We can customize our separators to fit your specific application. What are Features of Magnetic Separators Machine from ZONEDING.
Uncompromising Quality and Durability：Reduced downtime, lower maintenance costs, and a longer operational lifespan for your machinery, leading to a superior return on investment (ROI).
Proven Global Track Record：Peace of mind and confidence. You are partnering with a company whose solutions are tested and validated in real-world mining operations, minimizing your project risk.
End-to-End Customer Service and Support：A smooth project execution from start to finish and ongoing support to ensure your plant runs at peak performance.
Customer Case of Wet Drum Magnetic Separator
FAQ
1.Are you a manufacturing or trading company?
We are manufacturer. Our factory established in 2004. 2.What is the after-service of your company?
We can provide the foundation drawing, installation service, training, spare parts and other service according to the customer’s requirements. 3. Which mineral processing method should I choose? According to the properties of minerals, we will choose the treatment method that most suitable for you. 4. What machines are usually required for the whole production line? Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted. 5. What is the final mineral concentration? It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
6.What is magnetic separation?
It is a process that separates materials based on their magnetic properties. Magnet separation is an important sorting process.
7.How does it work?
It uses a magnetic field to attract magnetic materials, separating them from non-magnetic ones. How does a Magnetic Separator Work?
Our Rod Mill are available in different styles and numerous model sizes in each style to adapt to various grinding requirements. The rod mill is a grinding equipment that uses steel rods as the grinding media, widel…
Our Ceramic ball mill are available in different styles and numerous model sizes in each style to adapt to various grinding requirements. Ceramic ball mill, as a grinding tool for modern refinement industry, stands …
Our Flotation Machine are available in different styles and numerous model sizes in each style to adapt to various mineral separation requirements. A flotation machine is a crucial piece of equipment used to separ…
Spiral classifiers can grade different particles in ore slurry during the metal beneficiation process as well as deslime and dehydrate in the washing operation.
Zoneding Machine supplies different types of jigging in mineral processing(such as fixed jig and mobile jig machine), the customized parameters for your requirements. A Mineral jigging machines is a gravity concent…
Wet pan mill is widely used in the gold mining industry and is one of the indispensable equipment in the modern gold mining industry. In addition, it can also be used for mining and processing other non-ferrous metals and precious metal ore…
Our Shaking Table are available in different styles and numerous model sizes in each style to adapt to various mineral separation requirements. A shaking table, sometimes called a gold shaker table or gold recovery …
Hydrocyclone is a device that classifies materials according to grain size and uses centrifugal force to increase the precipitation rate of particles. A hydrocyclone, also known as a cyclone separator, is a sta…

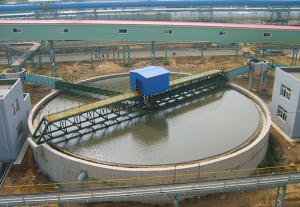

High efficiency concentrator is suitable to dewater concentrate and tailings in concentrator plant. Concentrate Thickener definition： Thickener (also known as thickener or agitator) is suitable for concentra…
