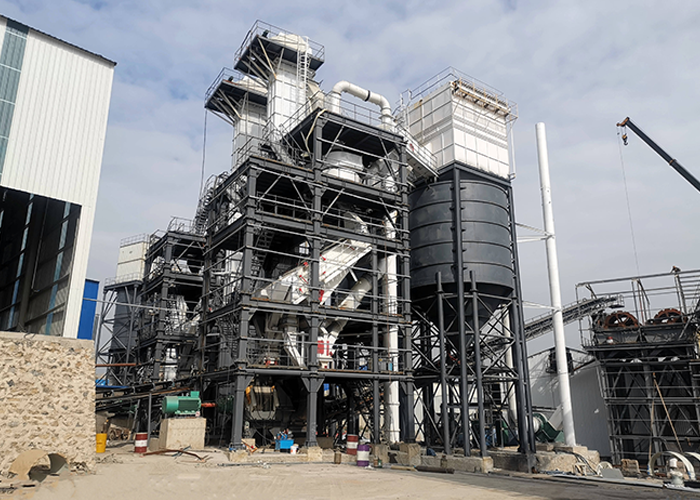

Quartz Beneficiation: How to “Pan for Gold” in Sand?

This article will explore how to extract value from quartz. “Quartz beneficiation” refers to a series of processes that improve the purity and quality of quartz sand, including removing impurities and increasing the concentration of silicon dioxide (SiO2). Through crushing, grinding, and advanced separation techniques, ordinary sand can be transformed into a valuable resource for various industries. This upgraded quartz sand can be used in glass manufacturing, ceramics, and electronics, resulting in significant economic benefits.

Last Updated: 2025-03 | Estimated Reading Time: 18 minutes

This Article Will Answer:

• What is Quartz? What are its Characteristics?
• What Fields is Purified Quartz Used In?
• Why can Quartz Beneficiation Turn Ordinary Sand into “Gold”?
• What is the Quartz Beneficiation Process, and What Equipment is Needed?
• How can Iron, Aluminum, and Titanium in Quartz be “Caught All at Once”?
• How to Maintain Machines on Quartz Beneficiation Plant?
• Scrubbing, Flotation, Acid Leaching, How To Choose?
• How to Solve Environmental Problems on Quartz Benefication Plant?
• How Much Money do You Need to Prepare to Open a Quartz Beneficiation Plant?
• How to Choose a Supplier for My Quartz Project?
• The Future of Quartz Beneficiation: High Purity, Ultrafine, and What Other New Trends are There?
• Customer Case
• Frequently Asked Questions
• Summary and Suggestions
• Why Choose ZONEDING?

What is Quartz? What are its Characteristics?

Quartz is a hard, crystalline mineral composed of silicon and oxygen atoms (SiO2). It is one of the most abundant minerals on Earth, found in various geological environments. Its unique properties make it valuable in a wide range of applications.

Here are some key characteristics of quartz:

• Hardness: Quartz has a Mohs hardness of 7, making it relatively resistant to scratching.
• Chemical Inertness: Quartz is chemically stable and resistant to most acids and alkalis.
• High Melting Point: Quartz has a high melting point (around 1713°C), making it suitable for high-temperature applications.
• Piezoelectric Properties: Quartz crystals exhibit piezoelectricity, meaning they generate an electrical charge when subjected to mechanical stress.
• Optical Properties: Quartz is transparent to translucent, with excellent optical transmission properties.

ZONEDING MACHINE understands the importance of these properties in quartz beneficiation. Our equipment is designed to handle the hardness and abrasive nature of quartz, ensuring efficient and reliable processing. We also consider the specific application of the final product when recommending the appropriate beneficiation process.

What Fields is Purified Quartz Used In?

Purified quartz is a valuable raw material in numerous industries due to its exceptional properties. The applications vary depending on the level of purity achieved through beneficiation.

Here are some key applications of purified quartz:

• Glass Manufacturing: Quartz sand is a primary ingredient in various types of glass, including flat glass, container glass, and specialty glass.
• Ceramics: Quartz is used in the production of ceramic bodies, glazes, and enamels, providing strength, whiteness, and thermal stability.
• Electronics: High-purity quartz is crucial for manufacturing semiconductors, integrated circuits, and other electronic components.
• Optics: Quartz crystals are used in optical lenses, prisms, and windows due to their excellent optical transmission properties.
• Refractories: Quartz is used in refractory materials for high-temperature applications, such as furnace linings and crucibles.
• Abrasives: Quartz sand is used as an abrasive material in sandblasting, grinding, and polishing applications.

The demand for high-purity quartz is driven by the growing electronics and optics industries. Efficient processes are essential to meet the stringent requirements of these applications. ZONEDING MACHINE provides advanced that can achieve the desired purity levels for various applications, ensuring the maximum value of your quartz deposit.

Why can Quartz Beneficiation Turn Ordinary Sand into “Gold”?

Quartz beneficiation transforms ordinary sand into a valuable resource by removing impurities and enhancing its properties. This process significantly increases the market value of quartz, making it a worthwhile investment.

Here’s how quartz beneficiation adds value:

• Increasing Silica Content: The beneficiation process removes impurities, thereby increasing the concentration of silicon dioxide (SiO2) in the sand and improving its overall grade.
• Removing Impurities: Removing impurities such as iron, aluminum, and titanium improves the optical and electrical properties of the quartz, making it suitable for high-tech applications.
• Improving Process Efficiency: Higher-grade quartz sand is easier to process in downstream applications, reducing energy consumption and production costs.
• Meeting Market Specifications: Beneficiation ensures that the quartz sand meets the required specifications for various industries, expanding its market reach.
• Expanding Applications: High-purity quartz can be used in more demanding applications, such as semiconductors and optics, commanding higher prices.

By upgrading the quality of ordinary sand, beneficiation can transform a low-value commodity into a high-value product, significantly increasing the profitability of mining operations. ZONEDING MACHINE provides tailored mineral processing solutions that maximize the recovery and grade of quartz sand, helping you turn ordinary sand into “gold.”

What is the Quartz Beneficiation Process, and What Equipment is Needed?

The quartz beneficiation process involves a series of steps designed to remove impurities and upgrade the quality of quartz sand. The specific process flow and equipment required depend on the type of quartz deposit and the desired purity level.

Here are the common steps in a quartz beneficiation process:

• Crushing:
  • Breaking down large lumps of quartz ore into smaller, manageable sizes.
  • Equipment used: Jaw crushers, cone crushers.
• Grinding:
  • Further reducing the particle size of the crushed quartz to liberate impurities.
  • Equipment used: Ball mills, rod mills.
• Scrubbing:
  • Removing surface coatings and loosely attached impurities from the quartz particles.
  • Equipment used: Scrubbers, attrition scrubbers.
• Classification:
  • Separating the quartz particles into different size fractions for optimal processing.
  • Equipment used: Hydrocyclones, classifiers.
• Flotation:
  • Separating quartz from impurities based on differences in surface properties.
  • Equipment used: Flotation machines.
• Magnetic Separation:
  • Removing magnetic impurities, such as iron oxides, from the quartz sand.
  • Equipment used: Magnetic separators.
• Acid Leaching:
  • Dissolving acid-soluble impurities from the quartz sand using various acids.
  • Equipment used: Leaching tanks, reactors.
• Dewatering and Drying:
  • Removing excess water from the processed quartz sand.
  • Equipment used: Thickeners, filters, rotary dryers.

ZONEDING MACHINE offers a comprehensive range of mineral processing equipment for quartz beneficiation, from crushing and grinding to separation and dewatering. Our experienced engineers can design a customized process flow and equipment selection to meet your specific needs and maximize the value of your quartz deposit.

Process Step	Equipment Used	Purpose
Crushing	Jaw Crusher, Cone Crusher	Reducing the size of raw quartz ore
Grinding	Ball Mill, Rod Mill	Liberating impurities from quartz particles
Scrubbing	Scrubbers, Attrition Scrubbers	Removing surface coatings and loosely attached impurities
Classification	Hydrocyclones, Classifiers	Separating quartz particles into different size fractions
Flotation	Flotation Machine	Separating quartz from impurities based on surface properties
Magnetic Separation	Magnetic Separator	Removing magnetic impurities from quartz sand
Acid Leaching	Leaching Tanks, Reactors	Dissolving acid-soluble impurities from quartz sand
Dewatering & Drying	Thickeners, Filters, Rotary Dryer	Removing excess water from processed quartz sand

How can Iron, Aluminum, and Titanium in Quartz be “Caught All at Once”?

Removing iron, aluminum, and titanium impurities from quartz is crucial for achieving high purity levels required in many applications. These impurities can negatively impact the optical, electrical, and thermal properties of quartz.

Here are the common methods for removing these impurities:

• Iron Removal:
  • Magnetic Separation: High-intensity magnetic separators can remove iron-bearing minerals, such as hematite and magnetite.
  • Acid Leaching: Leaching with hydrochloric acid (HCl) can dissolve iron oxides and hydroxides from the quartz surface.
  • Flotation: Selective flotation can separate iron-bearing minerals from quartz using specific reagents.
• Aluminum Removal:
  • Acid Leaching: Leaching with hydrofluoric acid (HF) can dissolve aluminum silicates from the quartz surface.
  • Calcination and Quenching: Heating the quartz to high temperatures followed by rapid cooling can create micro-fractures, making aluminum impurities more accessible to acid leaching.
• Titanium Removal:
  • Acid Leaching: Leaching with sulfuric acid (H2SO4) and hydrofluoric acid (HF) can dissolve titanium oxides and silicates from the quartz surface.
  • Flotation: Selective flotation can separate titanium-bearing minerals from quartz using specific reagents.

Often, a combination of these methods is used to achieve the desired level of impurity removal. The specific process flow depends on the type and concentration of impurities present in the quartz.ZONEDING MACHINE provides a range of equipment for removing iron, aluminum, and titanium from quartz. Our experts can help you select the most effective combination of methods to meet your specific purity requirements.

How to Maintain Machines on Quartz Beneficiation Plant?

Proper maintenance is crucial for ensuring the reliable and efficient operation of a quartz beneficiation plant. Regular maintenance can prevent breakdowns, extend the lifespan of equipment, and optimize production.

Here are some key maintenance practices for various types of equipment:

• Crushers:
  • Daily Inspection: Check for wear and tear on crushing plates, liners, and other components.
  • Lubrication: Lubricate bearings and other moving parts regularly according to the manufacturer’s recommendations.
  • Adjustment: Adjust the crusher settings to maintain optimal crushing performance.
  • Replacement: Replace worn parts promptly to prevent further damage.
• Grinding Mills:
  • Liner Inspection: Inspect the mill liners for wear and replace them as needed.
  • Ball/Rod Charge: Maintain the proper ball or rod charge to optimize grinding efficiency.
  • Bearing Lubrication: Lubricate the mill bearings regularly.
  • Drive System: Inspect the drive system for wear and alignment.
• Flotation Machines:
  • Impeller and Diffuser: Inspect and maintain the impellers and diffusers to ensure proper aeration and mixing.
  • Reagent Addition: Calibrate and maintain the reagent addition system to ensure accurate and consistent reagent dosing.
  • Cell Cleaning: Clean the flotation cells regularly to remove buildup and prevent clogging.
• Magnetic Separators:
  • Magnet Strength: Check the magnet strength regularly and re-magnetize as needed.
  • Belt and Drum: Inspect and maintain the belts and drums to ensure smooth operation.
  • Cleaning: Clean the separator regularly to remove accumulated magnetic materials.
• Pumps and Valves:
  • Packing and Seals: Inspect and replace packing and seals regularly to prevent leaks.
  • Impeller and Volute: Inspect the impeller and volute for wear and cavitation.
  • Valve Operation: Ensure proper valve operation and repair or replace faulty valves.
• Screens:
  • Screen Surface: Inspect the screen surface for damage or wear and replace it as needed.
  • Vibration System: Maintain the vibration system to ensure proper screening action.
  • Cleaning: Clean the screens regularly to prevent blinding.

Regular maintenance extends lifespan, reduces downtime, and optimizes the performance of equipment in quartz beneficiation plants. It is a crucial investment.ZONEDING MACHINE provides comprehensive maintenance services and spare parts for all of our equipment. We also offer training programs to help your personnel develop the skills and knowledge necessary to maintain your equipment properly.

Scrubbing, Flotation, Acid Leaching, How To Choose?

Scrubbing, flotation, and acid leaching are three important methods for purifying quartz sand, each with its unique advantages and limitations. The choice of the best method depends on the type and concentration of impurities present in the quartz, as well as the desired purity level.

Here’s a comparison of these methods:

• Scrubbing:
  • Principle: Removes surface coatings and loosely attached impurities through mechanical attrition.
  • Advantages: Simple, cost-effective, and environmentally friendly.
  • Disadvantages: Not effective for removing strongly bonded or internal impurities.
  • Best Suited For: Removing clay, silt, and other loosely attached contaminants from quartz sand.
• Flotation:
  • Principle: Separates quartz from impurities based on differences in surface properties.
  • Advantages: Highly selective, can remove a wide range of impurities, and effective for fine particles.
  • Disadvantages: Requires careful control of chemical reagents, can be more expensive than other methods.
  • Best Suited For: Removing mica, feldspar, and other silicate minerals from quartz sand.
• Acid Leaching:
  • Principle: Dissolves acid-soluble impurities from the quartz sand using various acids.
  • Advantages: Highly effective for removing iron, aluminum, and titanium impurities, can achieve very high purity levels.
  • Disadvantages: Requires careful handling of corrosive acids, can generate acidic wastewater that needs treatment.
  • Best Suited For: Achieving ultra-high purity levels for demanding applications, such as semiconductors and optics.

In many cases, a combination of these methods is used to achieve the desired purity level. For example, scrubbing may be used as a pre-treatment step to remove loosely attached contaminants, followed by flotation to remove silicate minerals, and finally, acid leaching to remove iron, aluminum, and titanium impurities.ZONEDING MACHINE offers equipment and expertise for all three of these quartz purification methods. Our engineers can help you design a customized process flow that maximizes efficiency and minimizes costs, while meeting your specific purity requirements.

How to Solve Environmental Problems on Quartz Benefication Plant?

Quartz beneficiation can have significant environmental impacts if not managed properly. Dust emissions, wastewater discharge, and tailings disposal are major concerns that need to be addressed.

Here are the strategies to minimize the environmental impact of quartz beneficiation:

• Dust Control:
  • Water Sprays: Use water sprays to suppress dust emissions from crushing, grinding, and screening operations.
  • Enclosed Equipment: Enclose equipment to contain dust and prevent it from escaping into the atmosphere.
  • Dust Collectors: Install dust collectors to capture and remove dust particles from the air.
• Wastewater Treatment:
  • Sedimentation: Use sedimentation tanks to remove suspended solids from the wastewater.
  • Neutralization: Neutralize the pH of acidic wastewater before discharge.
  • Chemical Treatment: Use chemical treatment to remove dissolved metals and other pollutants from the wastewater.
  • Water Recycling: Recycle treated wastewater for use in the beneficiation process to reduce water consumption.
• Tailings Management:
  • Tailings Dams: Construct and maintain tailings dams to safely store the tailings.
  • Tailings Disposal: Dispose of tailings in an environmentally responsible manner, such as backfilling mined-out areas or using them as construction materials.
  • Tailings Reuse: Explore opportunities to reuse tailings as raw materials for other industries.

By implementing these environmental control measures, quartz beneficiation can be conducted in a more sustainable and responsible manner. ZONEDING MACHINE is committed to providing environmentally friendly equipment and solutions for quartz beneficiation. We can help you design a process that minimizes environmental impact while maximizing the value of your quartz deposit.

How Much Money do You Need to Prepare to Open a Quartz Beneficiation Plant?

Investing in a quartz beneficiation plant requires a significant financial commitment. The total cost depends on several factors, including the plant capacity, the desired purity level, the complexity of the process flow, and the location of the plant.

Here’s a breakdown of the costs involved:

• Capital Costs:
  • Equipment: This includes crushers, grinding mills, flotation machines, magnetic separators, leaching tanks, and other process equipment.
  • Construction: This includes site preparation, building construction, and equipment installation.
  • Land: This includes the cost of purchasing or leasing the land for the plant.
  • Permits and Licenses: This includes the cost of obtaining the necessary permits and licenses to operate the plant.
  • Engineering and Design: This includes the cost of engineering design and process flow development.
• Operating Costs:
  • Raw Materials: This includes the cost of purchasing the raw quartz ore.
  • Energy: This includes the cost of electricity and other fuels.
  • Labor: This includes the cost of salaries and wages for plant personnel.
  • Chemicals: This includes the cost of reagents used in the flotation and acid leaching processes.
  • Maintenance and Repairs: This includes the cost of maintaining and repairing the plant equipment.
  • Waste Disposal: This includes the cost of disposing of tailings and other waste materials.

A small-scale quartz beneficiation plant may cost a few million dollars to set up, while a large-scale plant with advanced processing capabilities can cost tens of millions of dollars.

Here are some example costs:

• Small Plant (50,000 tons per year): $3 million to $7 million
• Medium Plant (200,000 tons per year): $10 million to $20 million
• Large Plant (500,000 tons per year): $25 million to $50 million or more

It is essential to conduct a thorough feasibility study to determine the economic viability of a quartz beneficiation project. ZONEDING MACHINE can provide you with a detailed cost estimate for your specific project, based on your requirements and local conditions.

How to Choose a Supplier for My Quartz Project?

Choosing the right supplier is vital for the success of your quartz beneficiation project. A reliable supplier can provide high-quality equipment, expert technical support, and comprehensive after-sales service, ensuring smooth and efficient operation of your plant.

Here are the key factors to consider when selecting a supplier:

• Experience and Expertise:
  • Choose a supplier with extensive experience in the quartz beneficiation industry.
  • Look for a supplier with a proven track record of successful projects.
  • Consider the supplier’s technical expertise and ability to provide customized solutions.
  • ZONEDING MACHINE, with its years of experience, offers tailored solutions and robust equipment for quartz beneficiation.
• Equipment Quality and Reliability:
  • Ensure that the supplier’s equipment is manufactured to high-quality standards.
  • Look for equipment that is durable, reliable, and easy to maintain.
  • Consider the equipment’s energy efficiency and environmental impact.
  • ZONEDING’s equipment is designed for durability and optimal performance, reducing downtime and increasing productivity.
• Comprehensive Service and Support:
  • Choose a supplier that offers comprehensive service and support, including installation, commissioning, and training.
  • Look for a supplier with a responsive and knowledgeable after-sales service team.
  • Consider the availability of spare parts and maintenance services.
    • ZONEDING MACHINE provides comprehensive service and support, from installation to training, ensuring the smooth operation of your plant.
• Cost-Effectiveness:
  • Compare the prices of equipment and services from different suppliers.
  • Consider the total cost of ownership, including equipment costs, operating costs, and maintenance costs.
  • Choose a supplier that offers competitive prices without compromising on quality or service.
  • ZONEDING MACHINE is a source supplier. We can provide the most cost-effective machine, designed to suit your needs, to protect your project.
• Reputation and References:
  • Check the supplier’s reputation and references from other customers.
  • Visit the supplier’s facilities and see their equipment in operation.
  • Talk to other customers about their experience with the supplier.
  • We,ZONEDING company, welcome to you at any time if you want to visit our factory.

By carefully considering these factors, you can choose a supplier who can help you achieve your quartz beneficiation goals. ZONEDING MACHINE prides itself on offering high-quality equipment, expert technical support, and comprehensive after-sales service to ensure the success of your project.

The Future of Quartz Beneficiation: High Purity, Ultrafine, and What Other New Trends are There?

Quartz beneficiation is a dynamic field that is constantly evolving to meet the changing needs of the industry. New technologies and trends are emerging that promise to improve efficiency, reduce environmental impact, and expand the applications of quartz sand.

Here are some key trends shaping the future of quartz beneficiation:

• High-Purity Quartz: The demand for high-purity quartz is growing rapidly, driven by the electronics and optics industries. Advanced beneficiation techniques, such as multi-stage acid leaching and hydrothermal treatment, are being developed to achieve ultra-high purity levels.
• Ultrafine Quartz: Ultrafine quartz powders are used in a variety of applications, including ceramics, paints, and plastics. Innovative grinding and classification technologies are being developed to produce ultrafine quartz powders with controlled particle size distributions.
• Dry Beneficiation: Dry beneficiation methods, such as air classification and electrostatic separation, are gaining popularity due to their ability to reduce water consumption and minimize environmental impact.
• Automated Process Control: Automated process control systems are being implemented to optimize plant performance, reduce energy consumption, and improve product quality.
• Tailings Reuse: Innovative technologies are being developed to reuse quartz tailings as raw materials for other industries, such as construction and agriculture.

These trends are transforming the quartz beneficiation industry. They make it more efficient, sustainable, and profitable. ZONEDING MACHINE is committed to innovation. We develop future-oriented solutions for our customers.

Customer Case

Case: Vietnam Vein Quartz Beneficiation Project

• Country: Vietnam
• Raw Ore: Vein Quartz
• Capacity:150T/H
• Raw Ore Particle Size: 200-300mm
• Main Impurities: Iron, Aluminum
• Challenges:
  • High content of iron and aluminum impurities
  • Strict requirements for final product purity
• Solution:
  • Adopt crushing-grinding-magnetic separation-acid leaching process
  • Use high-intensity magnetic separator to remove iron-bearing minerals
  • Use a mixture of hydrofluoric acid and hydrochloric acid for leaching to remove aluminum and residual iron
• Main Equipment:Jaw Crusher, Ball Mill, Magnetic Separator, Leaching Tanks
• Final Quartz Purity: SiO2 > 99.9%
• Customer Evaluation: The quartz beneficiation equipment provided by ZONEDING is efficient and reliable. The process flow they designed effectively removed the iron and aluminum impurities from our vein quartz, achieving the high purity levels required for our application. Their after-sales service was also excellent, providing us with timely technical support and guidance.

Frequently Asked Questions

• Question 1: What is the optimal particle size for flotation?
  The optimal particle size typically ranges from 75 to 150 micrometers.
• Question 2: How can water consumption be minimized?
  Implement water recycling systems and consider dry beneficiation methods.
• Question 3: What are the common acids used in acid leaching?
  Hydrochloric acid (HCl), hydrofluoric acid (HF), and sulfuric acid (H2SO4) are commonly used.
• Question 4: What are the key factors to consider when selecting a quartz beneficiation process?
  The type of quartz deposit, the type and concentration of impurities, the desired purity level, and the environmental regulations.
• Question 5: Where can I find reliable equipment for quartz beneficiation?
  Contact experienced suppliers like ZONEDING MACHINE who can provide customized solutions and technical support.

Summary and Suggestions

Quartz beneficiation is essential to transform quartz resources into valuable materials. The process involves steps like crushing, grinding, and separation. The best method depends on the ore. Environmental protection is important.
Starting a plant requires funding. Feasibility studies are key. Plan for innovation. This will bring success. ZONEDING MACHINE can help you succeed.

Why Choose ZONEDING?

ZONEDING MACHINE is a leading manufacturer of mining equipment. We provide solutions to B2B customers.
Founded in 2004, ZONEDING is a long-established mining machinery manufacturer with rich experience in the industry. We provide customers with professional mineral processing and crushing solutions and strictly control the design and product quality. ZONEDING has advanced production equipment and a professional engineering team to ensure that every piece of equipment meets the highest quality standards. Our 8,000 square meter workshop can produce 500 pieces of various products every year to meet your various needs. ZONEDING offers crushers, grinders, and flotation machines. And our company has experience on different minerals solutions, so we can help you on your project. ZONEDING can design processing plants. Contact ZONEDING MACHINE for quality equipment.

Last Updated: March 2025
