What Is a Trommel Screen? The Ultimate Guide for Sticky Materials
If you are struggling with materials that are wet, sticky, or mixed with dirt and clay, you know the frustration of a clogged screen. Traditional vibrating screens grind to a halt, killing your productivity. As an engineer at ZONEDING MACHINE, I have seen this problem cost businesses thousands in downtime. The trommel screen, also known as a rotary screen, is often the hero your operation needs. It is not just another screen; it is a specialized machine designed to solve the exact problem of separating difficult materials. This guide will explain what a trommel is, how it works, and why it is the best choice when other screens fail.
What is a Trommel Screen Used For?
A trommel screen is a piece of screening equipment that separates materials by size. But its real purpose is much more than that. Think of it less like a sieve and more like a giant washing machine for rock, soil, and waste. Its main job is to handle mixed materials that would instantly clog a standard. The trommel’s gentle tumbling action is perfect for separating materials without creating excess dust or breaking down softer materials.
The primary use of a trommel screen is to tackle materials with high moisture content, clay, or organic matter. It excels at breaking apart clumps and separating valuable materials from waste. For example, it can separate rich topsoil from rocks and roots, or sort valuable concrete and wood from a pile of construction debris. It is a workhorse in industries where material quality and separation are critical for turning waste into profit.
How Does a Trommel Screen Work?
The magic of a trommel screen is in its simple and robust design. It is not about high-frequency shaking. It is about rotation, tumbling, and gravity. This process is highly effective for wet material screening and avoids the common issue of screen clogging.
Here is how it works step-by-step:
- Feeding: Material is fed into the elevated end of the large, rotating drum. The drum is tilted at a slight downward angle.
- Tumbling and Scrubbing: As the drum rotates, internal bars called “lifters” pick up the material. They carry it upwards until gravity causes it to fall back down. This continuous tumbling and rolling action is key. It scrubs the materials against each other, breaking up clay lumps and separating dirt from rocks. If water is added, this becomes a powerful washing process.
- Sizing (Separation): The drum itself is made of screen panels with specific hole sizes. As the material tumbles its way down the length of the drum, smaller particles fall through the screen openings. This is your “undersize” material (like soil or sand).
- Discharge: Larger materials that cannot pass through the screen holes continue to tumble down the drum and exit at the lower end. This is your “oversize” material (like rocks, concrete, or wood chunks). The result is two or more clean, separated product piles.
What Materials Need a Trommel Screen?
A trommel screen is not for every job. You would not use it for screening clean, dry gravel. That is a job for a vibrating screen. A trommel’s true value is in handling the “problem materials” that other machines cannot. If you work with any of the following, a trommel is likely the solution you need.
- Topsoil and Compost: It separates rich soil and finished compost from rocks, roots, and unshredded organic matter without creating excessive dust.
- Construction and Demolition (C&D) Waste: It is perfect for separating soil, wood, and concrete from mixed demolition debris. Its gentle action prevents over-shredding of wood and plastics, making them easier to sort later.
- Municipal Solid Waste (MSW): In recycling facilities, trommels are used to separate organic waste (food scraps) from plastics, metals, and paper.
- Aggregate and Mining: It is essential for washing clay and silt away from sand, gravel, and valuable ore. In Placer Gold Mining, a trommel is used to wash gold-bearing gravels, breaking up clay to release the fine gold.
- Wood Chip and Mulch: It can separate different sizes of wood chips or remove fines (sawdust) from the final product.
Trommel Screen vs. Vibrating Screen
Choosing between a trommel and a vibrating screen is a critical decision. Making the wrong choice leads to inefficiency and lost money. This table breaks down the key differences to help you decide.
| Feature | Trommel Screen | Vibrating Screen |
|---|---|---|
| Best For | Wet, sticky, clumpy materials (soil, compost, C&D waste) | Dry, free-flowing materials (crushed stone, sand, gravel) |
| Action | Gentle tumbling and scrubbing | Aggressive high-frequency shaking |
| Clogging Risk | Very Low. Self-cleaning action. | High with wet or sticky materials. |
| Your Practical Gain | You can process “problem” materials without stopping. | You get fast, precise sizing of clean materials. |
Mobile vs. Stationary Trommel: Operational Strategy
The choice between a mobile and a stationary trommel screen configuration depends on the operational model and site logistics.

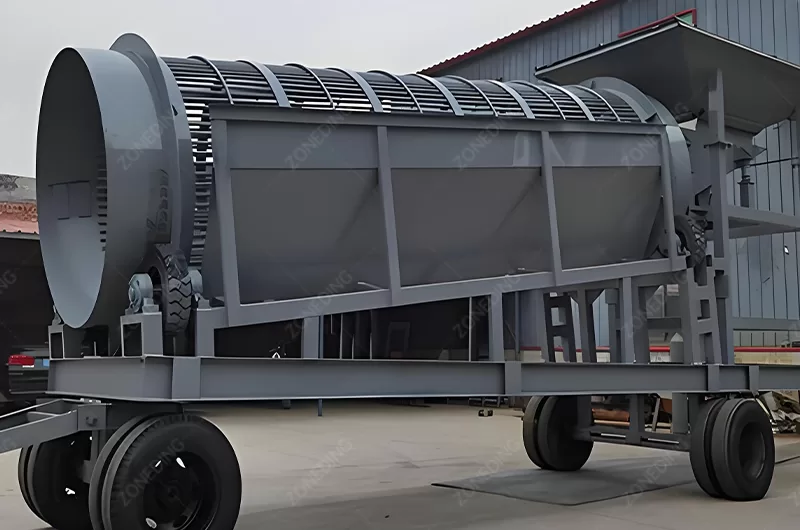

Mobile Trommel Screens
These units are mounted on a wheeled or tracked chassis, offering high operational flexibility. They are the standard choice for:
- Contractors who move between multiple job sites.
- Operations with large sites that require the screen to be moved to different stockpiles.
- Projects with a defined, shorter-term duration. Our Tracked Mobile Screening Plant models exemplify this flexibility.

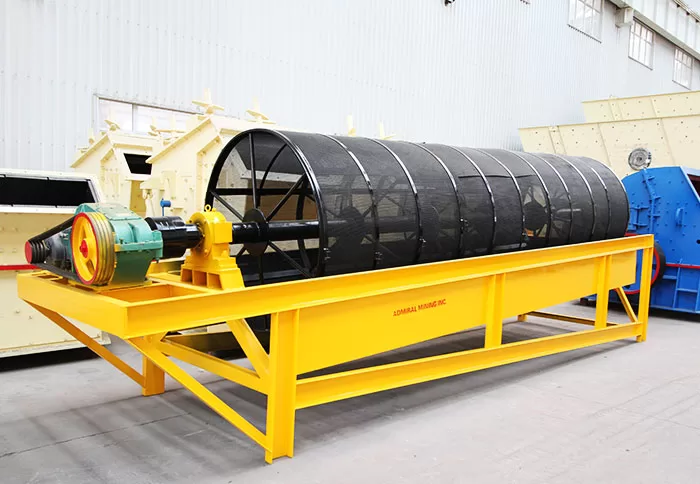

Stationary Trommel Screens
Designed for long-term, high-capacity installation, stationary trommels are integrated into permanent processing plants. They are specified for:
- Permanent facilities such as MRFs, large-scale composting yards, or mining operations.
- Applications requiring consistently high throughput and integration with a complex network of conveyors and other Beneficiation Equipment.
FAQs
Q1: What are the key design parameters for a trommel screen?
A：The key parameters are drum diameter and length (which determine capacity and retention time), angle of inclination, rotational speed, and the size and shape of the screen apertures. The design of the internal lifter bars is also critical for processing efficiency.
Q2: How does water addition impact trommel performance?
A: Adding water via spray bars inside the drum transforms the trommel into a highly effective scrubber or wash plant. Water helps to break down clay, wash contaminants from rock surfaces, and transport fines through the screen apertures, significantly improving separation efficiency for certain materials.
Q3: What is the typical maintenance for a trommel screen?
A: Routine maintenance involves inspection and lubrication of the drum support trunnions and drive system (chain or gear), regular checks for wear or damage on the screen panels, and ensuring the feed and discharge points remain clear of obstruction.
Question 4: Can a trommel produce multiple product sizes?
A: Yes. A trommel drum can be constructed with concentric screens or sequential sections of different aperture sizes along its length. This allows for the separation of a single feed into three or more distinct product sizes.
Summary and Recommendations
The trommel screen is a specialized piece of screening equipment whose primary value lies in its ability to process difficult materials that are unsuitable for conventional screens. Its core function is often material liberation and scrubbing through a controlled tumbling action, which mitigates screen clogging and ensures high operational uptime.
The selection of a trommel should be based on a thorough analysis of feed material characteristics. For wet, sticky, and agglomerated feeds, it is the superior technical solution. The choice between a mobile or stationary configuration is a strategic decision based on operational flexibility versus the need for high-capacity, permanent installation.
