Diamond Wash Plant: How to Efficiently Recover Diamonds?

Are you looking for efficient from your raw ore? A diamond wash plant is crucial for this. It uses core processes to separate diamonds from the source material. The right diamond processing methods are key to success. ZONEDING focused on diamond beneficiation, offering solutions for high recovery. This guide will explain the process and how to optimize it.

Last Updated: March 2025 | Estimated Reading Time: 22 minutes

This Article Will Help You Understand:

• What is a diamond wash plant & its core processes?
• How to customize a plant for kimberlite/alluvial deposits?
• Key steps affecting diamond recovery & quality?
• Handling sticky clay in diamond washing effectively?
• Eco-friendly & cost-effective water/tailings solutions?
• Choosing the right diamond recovery technologies?
• Advantages of modular wash plants & ideal conditions?
• Main operating costs & how to control them?
• Improving efficiency & profitability of wash plants?
• Designing security measures to protect diamonds?

What is a diamond wash plant & its core processes?

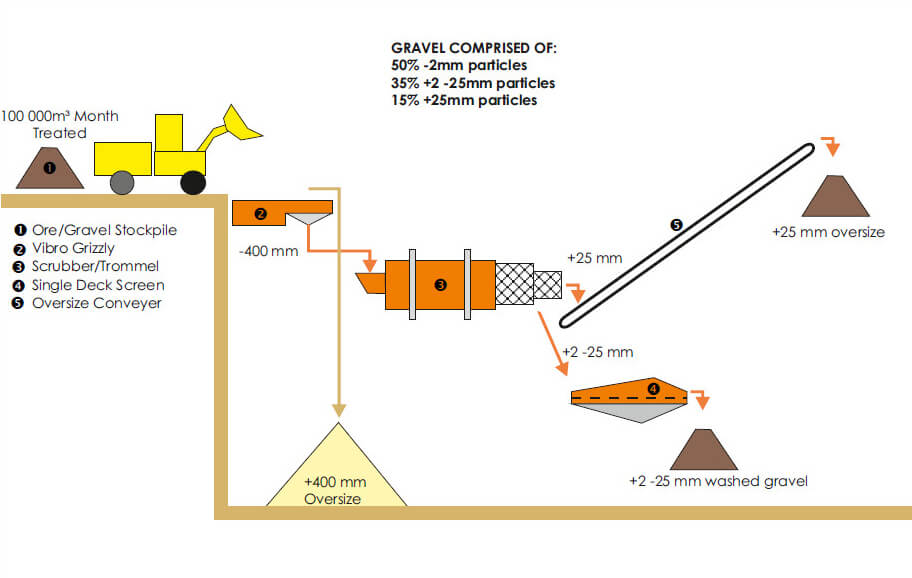

A diamond wash plant is a facility that processes diamond-bearing ore to separate and recover diamonds. The core process involves several stages.

1. Crushing: Reduces the size of the ore to liberate diamonds. and Cone Crusher are often used.
2. Scrubbing: Removes clay and other fine materials that can hinder separation. Scrubbers use water and agitation to break down these materials.

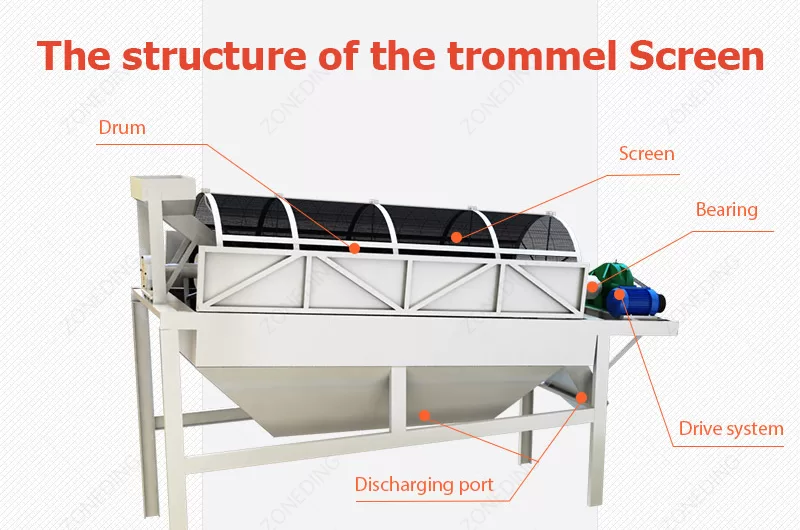

3. Screening: Separates the ore into different size fractions using screens. This allows for more efficient processing in later stages. Vibrating Screen is often used in this stage

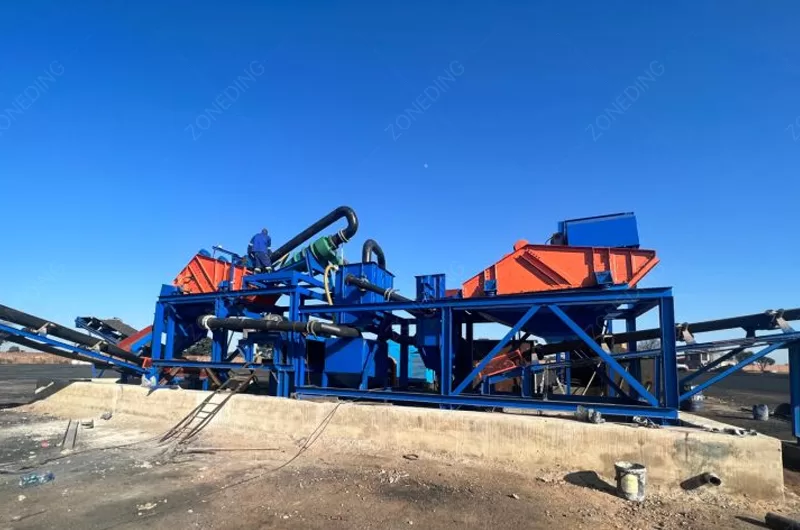

4. Dense Medium Separation (DMS): A key process where ore is mixed with a dense medium (ferrosilicon) and separated based on density. Diamonds, being denser, sink and are recovered.
5. Concentrate Treatment: The DMS concentrate is further processed to recover the diamonds. This may involve techniques like X-ray sorting or grease tables.
6. Final Recovery: Hand sorting or automated systems are used to pick out the final diamonds.

The main goal is to maximize diamond recovery while minimizing damage to the diamonds. This requires careful control of each stage of the process.

How to customize a plant for kimberlite/alluvial deposits?

Customizing a diamond wash plant for kimberlite processingor alluvial diamond mining depends on the specific characteristics of the ore.

• Kimberlite Processing:
  • Hardness: Kimberlite rock is often hard and requires robust Crushing Equipment.
  • Clay Content: High clay content is common, requiring effective scrubbing and de-sliming.
  • Diamond Grade: Diamond grades can be low, necessitating efficient concentration methods.
  • Customization: Focus on effective Crushing, scrubbing, DMS, and final recovery techniques like XRT sorting.

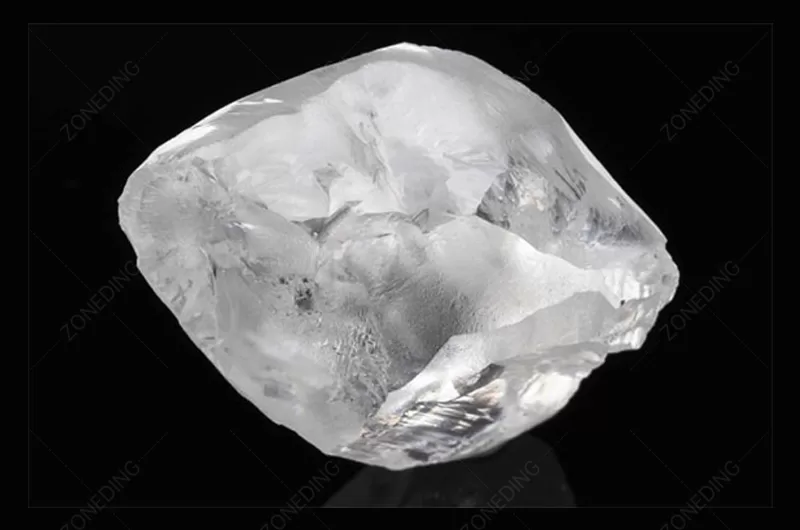

• Alluvial Diamond Mining:
  • Hardness: Alluvial deposits are generally softer and easier to process than kimberlite.
  • Clay Content: Clay content can vary, but is often less than in kimberlite.
  • Diamond Grade: Diamond grades can be higher in certain alluvial deposits.
  • Customization: Focus on screening, gravity concentration (jigs, spirals), and final recovery.

The key is to understand the “personality” of the material; precise analysis prevents problems.

Key steps affecting diamond recovery & quality?

Several key steps in a diamond wash plant significantly impact diamond recovery and quality.

• Scrubbing:
  • Impact: Incomplete scrubbing leads to clay coating diamonds, reducing DMS efficiency.
  • Optimization: Use high-pressure water jets and effective scrubbers.
• Screening:
  • Impact: Incorrect screen sizes can lead to diamonds being lost in oversized or undersized fractions.
  • Optimization: Use accurate screens and regular maintenance.

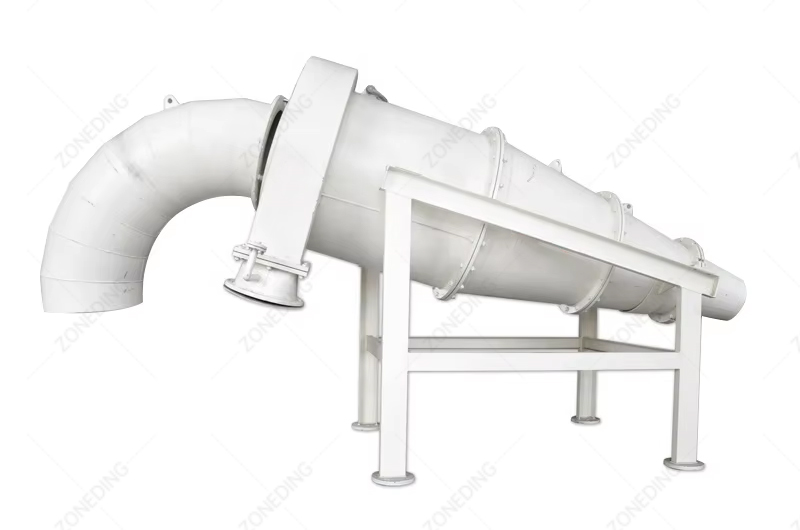

• Dense Medium Separation (DMS):
  • Impact: Inefficient DMS results in lower diamond recovery and higher concentrate volumes.
  • Optimization: Control medium density, feed rate, and equipment settings.
• Final Recovery:
  • Impact: Inefficient final recovery leads to diamonds being lost.
  • Optimization: Employ XRT sorting, grease tables, and skilled hand sorters.

Focusing on these critical areas maximizes recovery and minimizes diamond damage.

Handling sticky clay in diamond washing effectively?

High-sticky clay can cause major problems in diamond wash plants, leading to clogging and reduced efficiency. Effective management is crucial.

Pre-Treatment:

• Clay Dispersants: Add chemicals like sodium hexametaphosphate to disperse clay particles.
• High-Pressure Water: Use high-pressure water jets to break down clay clumps.

Scrubbing:

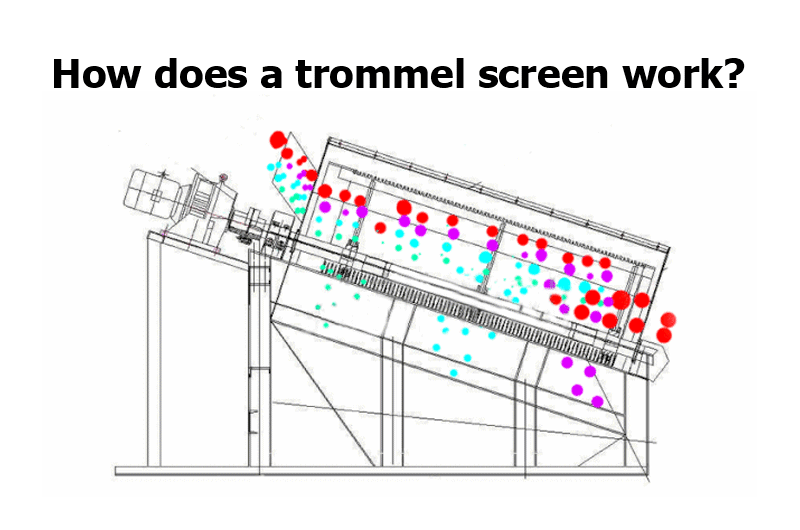

• Efficient Scrubbers: Use scrubbers designed for high clay content, such as rotary scrubbers.
• Longer Scrubbing Time: Increase scrubbing time to ensure thorough clay removal.

De-sliming:

• Hydrocyclone: Use hydrocyclones to remove fine clay particles from the ore slurry.
• Multi-Stage De-sliming: Employ multiple stages of de-sliming for maximum clay removal.

Equipment Design:

• Open Designs: Use equipment with open designs to prevent clogging.
• Self-Cleaning Screens: Install self-cleaning screens to prevent clay buildup.

By addressing clay issues proactively, you can minimize downtime and maximize diamond recovery.

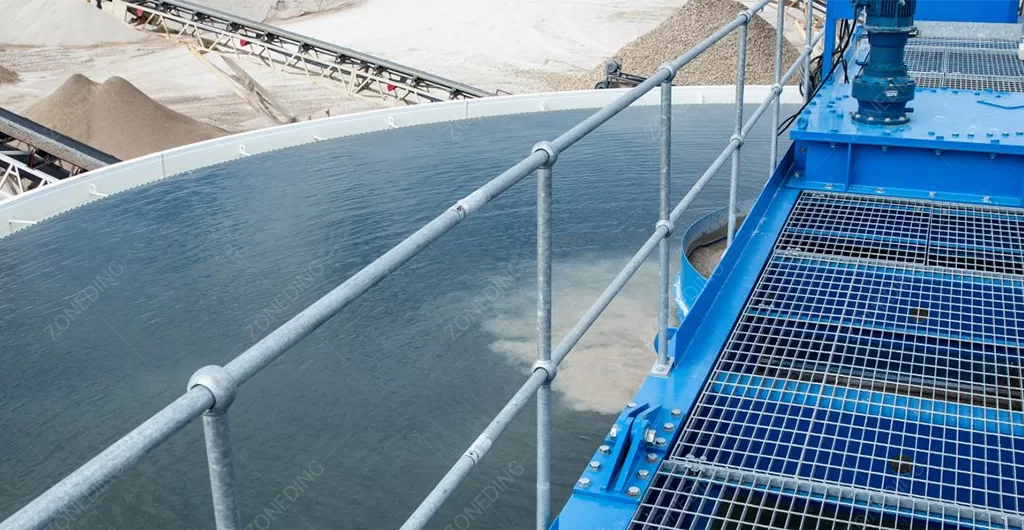

Eco-friendly & cost-effective water/tailings solutions?

Water management and tailings disposal are critical for environmental sustainability and cost control in diamond wash plants.

1. Water Recycling:
   • High Efficiency Concentrator: Use High Efficiency Concentrator to separate solids from water.
   • Clarifiers: Use clarifiers to remove fine particles from water.
   • Recycle: Recycle clarified water back into the wash plant.
2. Tailings Management:
   • Dry Stacking: Dewater tailings and stack them dry to reduce water use and environmental impact.
   • Tailings Dams: Construct well-designed tailings dams with proper liners to prevent leaks.
   • Rehabilitation: Rehabilitate tailings dams after use by planting vegetation.
3. Environmental Monitoring:
   • Water Quality Monitoring: Regularly monitor water quality to ensure compliance with environmental regulations.
   • Dust Control: Implement dust control measures to minimize air pollution.

Implementing these solutions reduces water consumption, minimizes environmental impact, and lowers operating costs.

Choosing the right diamond recovery technologies?

Selecting the right diamond recovery technologies is essential for maximizing efficiency and minimizing costs.

1. Traditional Methods:
   • Jigging Separator Machine: Effective for coarser diamonds.
   • Grease Tables: Capture diamonds based on their hydrophobic properties.
   • Hand Sorting: Labor-intensive, but can be effective for final recovery.
2. Modern Technologies:
   • Dense Medium Separation (DMS): Highly effective for concentrating diamonds.
   • X-ray Transmission (XRT) Sorting: Detects diamonds based on their X-ray absorption properties. This is the most modern.
   • Laser-Induced Fluorescence (LIF) Sorting: Detects diamonds based on their fluorescence properties.
3. Combined Approach:
   • Coarse Diamonds: Use Jigging Separator Machine or DMS followed by XRT sorting.
   • Fine Diamonds: Use DMS followed by grease tables or LIF sorting.

The best approach depends on diamond size distribution, ore characteristics, and budget. “Water grading art” is crucial; select the correct sorting gear.

Advantages of modular wash plants & ideal conditions?

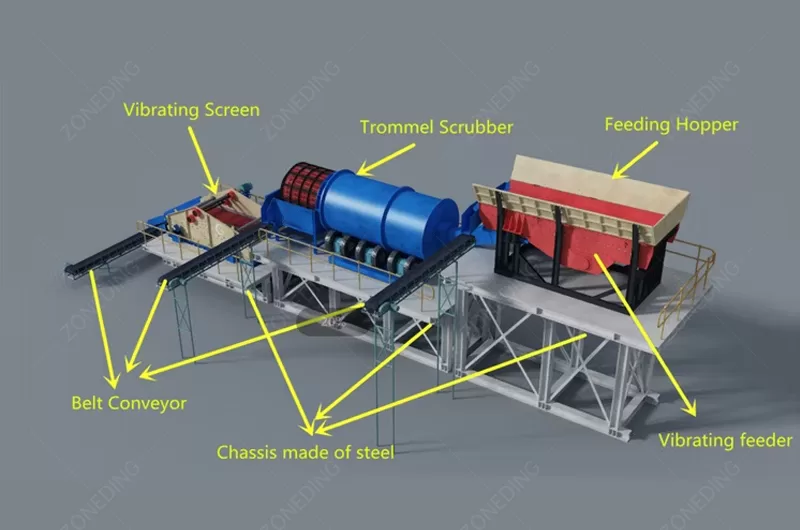

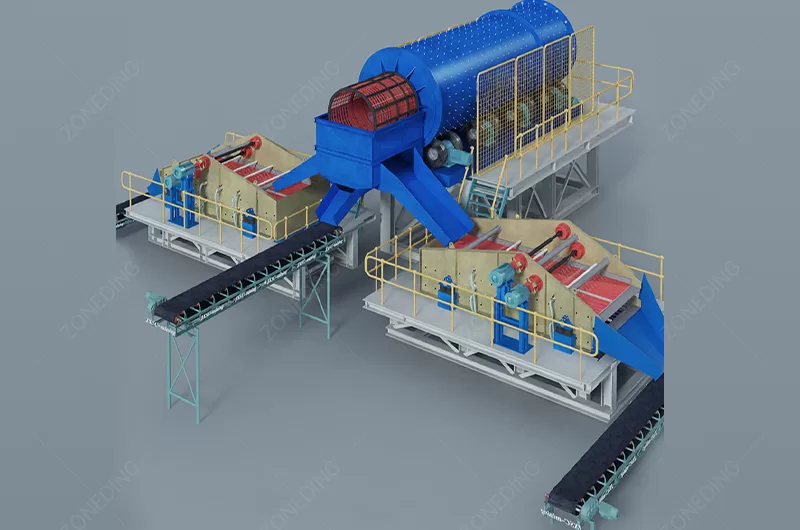

Modular and mobile diamond wash plants offer several advantages over fixed plants, making them suitable for specific mining conditions.

• Advantages:
  • Portability: Easy to transport and set up at different mining locations.
  • Flexibility: Can be quickly reconfigured to adapt to changing ore characteristics.
  • Scalability: Can be easily expanded or reduced to match production needs.
  • Lower Capital Cost: Generally lower initial investment compared to fixed plants.
• Ideal Conditions:
  • Small Deposits: Suitable for small or short-term diamond deposits.
  • Remote Locations: Ideal for remote locations with limited infrastructure.
  • Exploration: Can be used for exploration and pilot-scale testing.
  • Alluvial Mining: Well-suited for alluvial diamond mining operations.

Modular plants provide flexibility and cost-effectiveness for certain mining scenarios.

Improving efficiency & profitability of wash plants?

Several strategies can be employed to improve the overall efficiency and profitability of existing diamond wash plants.

1. Process Optimization:
   • Analyze Data: Collect and analyze data on plant performance to identify areas for improvement.
   • Experiment: Conduct experiments to optimize process parameters.
2. Technology Upgrades:
   • Install Modern Equipment: Upgrade to more efficient equipment, such as XRT sorters.
   • Automate Processes: Automate manual processes to reduce labor costs and improve consistency.
3. Training:
   • Train Personnel: Provide training to plant operators and maintenance personnel.
4. Maintenance:
   • Preventive Maintenance: Implement a preventive maintenance program to minimize downtime and equipment failures.
5. Loss Prevention:
   • Security: Implement strong security measures to prevent diamond theft.

“Precise management” and tech upgrades boost efficiency.

Designing security measures to protect diamonds?

Security is paramount in diamond wash plants. Robust measures are crucial to protect diamonds from theft.

1. Access Control:
   • Restricted Access: Limit access to the plant to authorized personnel only.
   • Security Checks: Conduct thorough security checks on all personnel entering and leaving the plant.
2. Surveillance:
   • CCTV: Install CCTV cameras throughout the plant, covering all critical areas.
   • Monitoring: Continuously monitor CCTV footage.
3. Diamond Handling:
   • Secure Transfer: Use secure containers and procedures for transferring diamonds.
   • Limited Handling: Minimize the number of people handling diamonds.
4. Audits:
   • Regular Audits: Conduct regular security audits to identify vulnerabilities.
5. Personnel Vetting:
   • Background Checks: Conduct thorough background checks on all employees.

“Red line awareness” is key for safety in the plant.

Diamond Wash Plant FAQs

Question 1: What is the typical diamond recovery rate in a modern wash plant?
Diamond recovery rates typically range from 85% to 98% in a well-operated modern wash plant, depending on diamond size distribution, ore type, and the technologies used.
Question 2: What is the role of DMS in diamond recovery?
DMS (Dense Medium Separation) is crucial for efficiently concentrating diamonds. It separates heavy minerals, including diamonds, from lighter waste material based on density.
Question 3: What are the benefits of using XRT technology in diamond sorting?
XRT (X-ray Transmission) technology provides automated, high-throughput diamond sorting. It detects diamonds based on their X-ray absorption properties, reducing the need for manual handling and improving recovery.
Question 4: How often should a diamond wash plant undergo maintenance?
Regular maintenance should be performed according to the manufacturer’s recommendations, typically including daily, weekly, monthly, and annual inspections. This proactive approach reduces downtime and equipment failures.

Summary & Next Steps

Efficient diamond recovery from your raw ore hinges on the right diamond processing techniques in your diamond wash plant. Customization for kimberlite or alluvial diamond mining, careful attention to scrubbing and DMS, and the adoption of modern technologies like XRT diamond sorting are all crucial. Remember the importance of both environmental responsibility and rigorous security.
