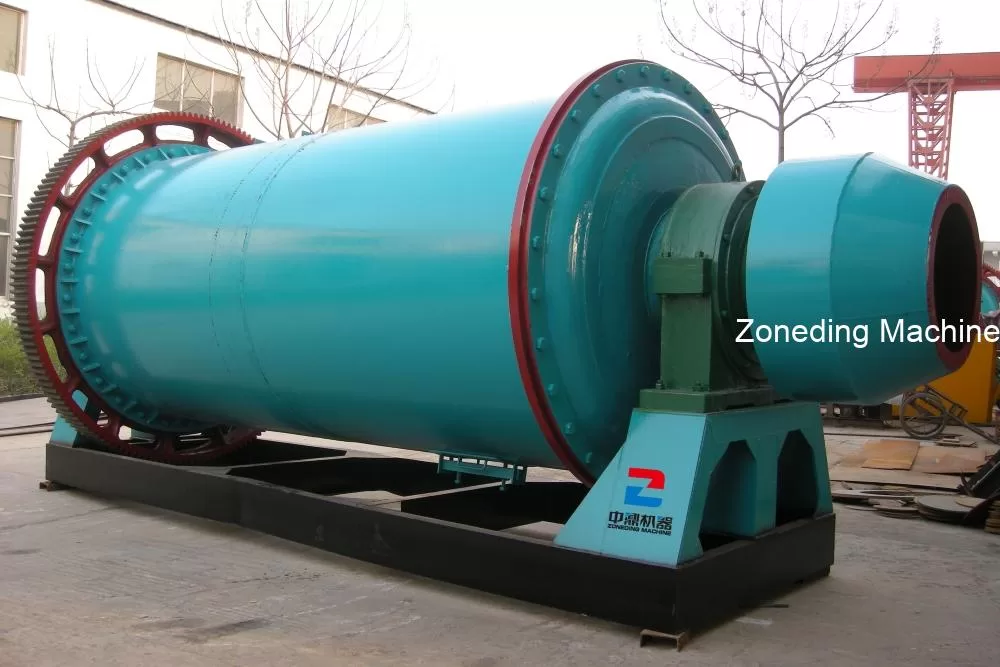

Lithium pyroxene ball mill features, lithium ore ball mill price

You know you need a ball mill for your lithium ore processing plant. But the real question is not the price tag; it’s the cost of lost lithium in your tailings. A small increase in recovery is worth millions, and that gain is engineered into the features of the mill itself.

The optimal spodumene ball mill is a precision machine designed for one purpose: achieving perfect mineral liberation while minimizing the creation of fine slimes. Key features like the discharge type (grate vs. overflow), liner material (rubber vs. steel), and its integration into a closed-circuit grinding system directly impact lithium recovery rates and the final ball mill price.

Before we discuss the price, let’s analyze the features that protect your revenue.

Why Is Incorrect Grinding the Cause of Low Spodumene Flotation Recovery?

Over-grinding is the silent killer of profitability in a spodumene processing plant.

When hard spodumene ore is ground too fine (over-grinding), it creates excessive “slimes”—ultra-fine particles (<10-20 microns). These slimes have a massive surface area, consume expensive flotation reagents, and respond poorly in the recovery circuit, leading to significant and irreversible losses of valuable lithium to the tailings.

The goal of spodumene grinding is not to make fine powder. The goal is to crack the ore grains just enough to free the spodumene crystals from the waste rock (gangue). This is called achieving the “liberation size.” An effective grinding circuit is one that liberates the spodumene and immediately removes it from the mill before it can be ground into slimes. Every particle ground finer than its liberation size represents wasted energy and lost recovery.

Avoiding Iron Contamination: How Should You Choose Your Ball Mill Liners for Battery-Grade Standards?

For battery-grade lithium, purity is everything. Your mill can be your biggest source of contamination.

To prevent iron contamination when grinding abrasive spodumene, high-quality rubber liners are the superior choice over traditional steel liners for the secondary grinding stage. Rubber liners minimize metal-on-metal abrasion, protecting the purity of the final lithium concentrate. While ceramic liners offer the highest purity, rubber provides an excellent balance of wear life, contamination control, and investment cost.

Grinding hard (Mohs 6.5-7) spodumene with steel balls and steel liners is a recipe for iron contamination. The constant abrasion sheds fine iron particles into the slurry, which can be impossible to remove later.

Liner Selection Trade-offs:

Liner Material	Purity Protection	Wear Resistance	Initial Cost	Best Application

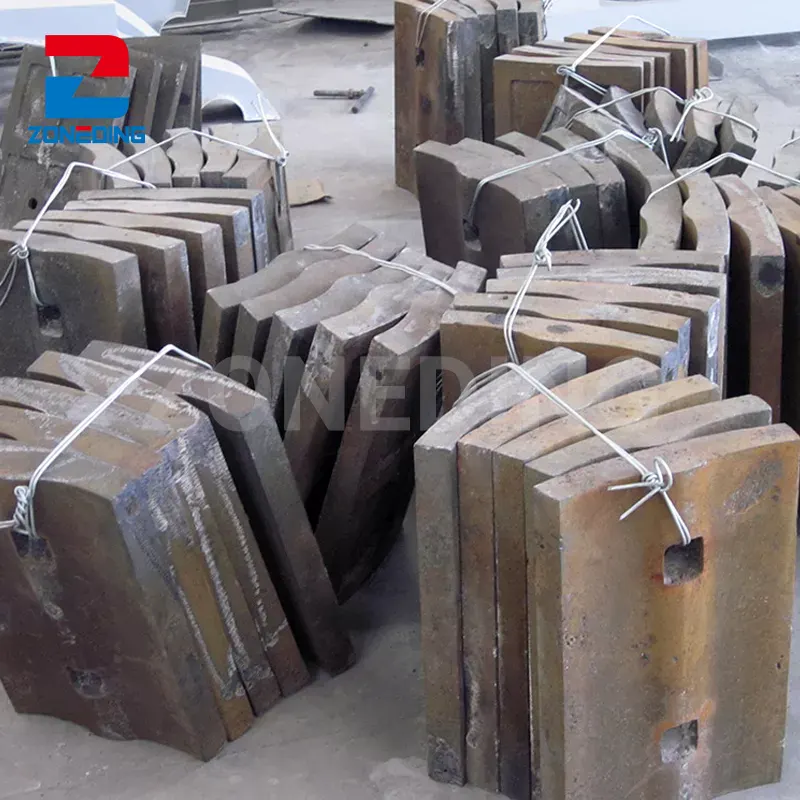

High-Chrome Steel	Low	High	Medium	Primary / Coarse Grinding

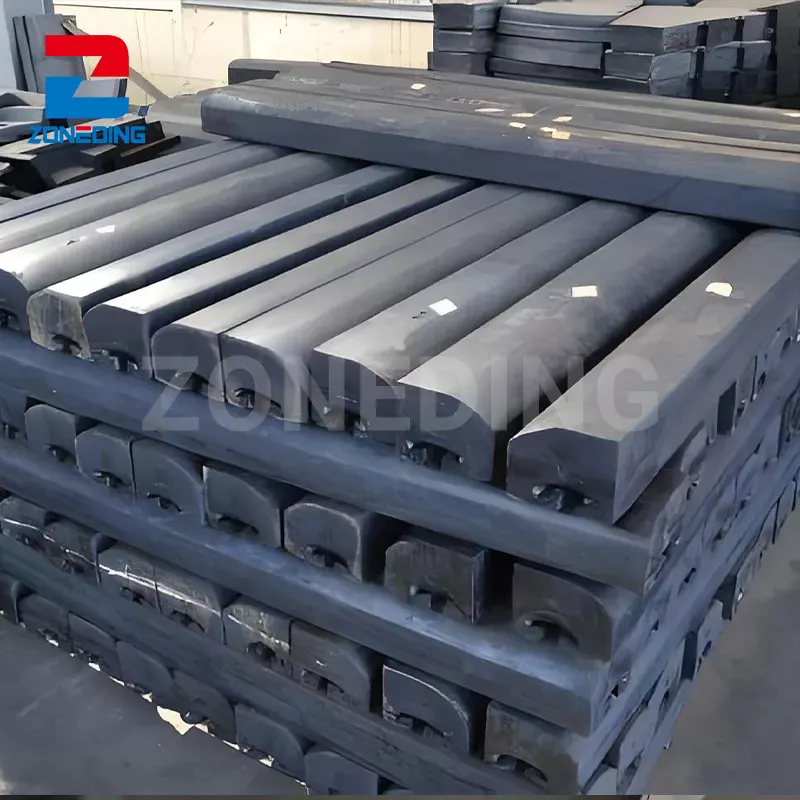

Rubber Liners	High	Very Good	Medium-High	Secondary / Fine Grinding

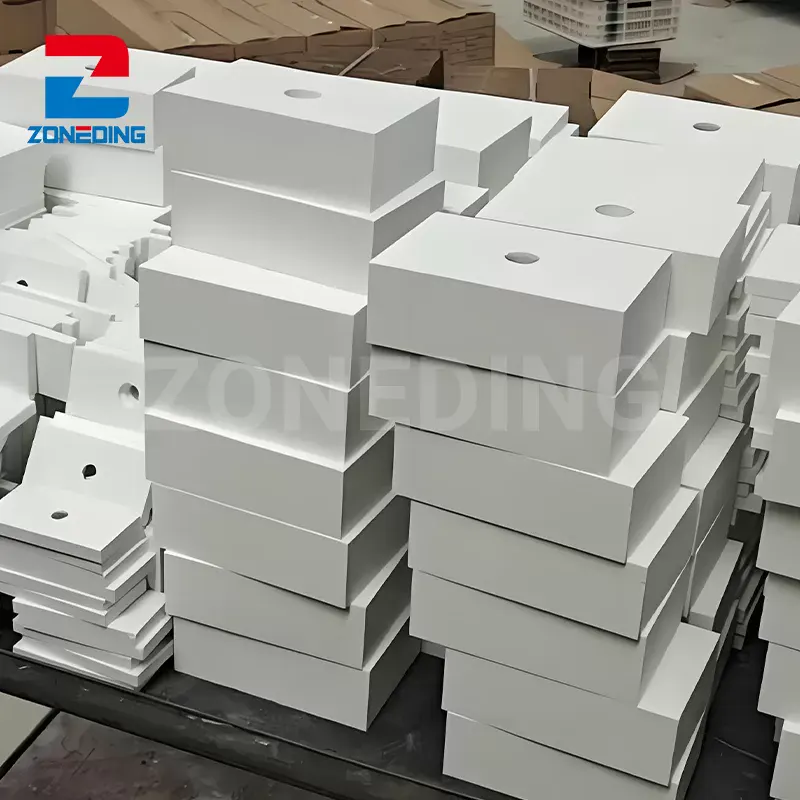

Ceramic Liners	Ultimate	Good	High	Ultra-Fine, High-Purity Grinding

Grate or Overflow? Which Ball Mill Type Better Prevents Over-Grinding of Lithium Ore?

This is a critical technical choice that directly affects the efficiency of your grinding circuit.

For spodumene, a grate discharge ball mill is generally preferred over an overflow ball mill. The grate discharge mechanism allows for faster removal of slurry from the mill. This shorter residence time reduces the chance for correctly sized particles to be over-ground, thus minimizing the creation of harmful slimes and improving overall lithium recovery rates.

While an overflow mill is simpler mechanically, its slower discharge rate means particles spend more time inside the mill. In a high-efficiency spodumene circuit that relies on rapid classification and recirculation, the quick-pass nature of a grate discharge mill is a significant advantage. It allows the hydrocyclones to do their job of separating liberated particles more effectively.

The Heart of the Mill: How Do the Drive System and Motor Power Affect Your Long-Term Electricity Costs?

The drive system is a major component of the ball mill price and your future electricity bills.

The power of the motor is determined by the mill size and the hardness of your specific spodumene ore. A robust, high-efficiency motor and gearbox are essential for reliable operation. The power consumption per ton is a key metric, and a well-engineered mill, optimized for the ore’s characteristics, will have a lower long-term operating cost (OPEX).

The drive system—consisting of the motor, gearbox, girth gear, and pinion—is the most complex part of the mill. For large spodumene ball mills, a low-speed synchronous motor with an air clutch is often the standard, providing high torque and reliability. Investing in a premium, energy-efficient motor and a properly sized drive system will pay dividends over the mine’s life through lower energy bills and reduced downtime.

Key Factors That Determine the Final Quote: How Do Capacity, Liners, and Brands Affect the Price?

A lithium ore ball mill price is not a single number; it is the sum of engineered solutions.

The final price of a spodumene ball mill is primarily determined by three factors: 1) The required throughput (tons per hour), which dictates the mill’s physical size; 2) The choice of liners (rubber liners are typically more expensive upfront than steel); and 3) The brand and origin of the motor, gearbox, and bearings, which significantly impact cost and quality.

A quote for a “bare mill” is misleading. A complete, responsible quotation from a manufacturer like ZONEDING will include the mill shell, a full set of liners, the complete drive train (motor, gearbox, gears), bearings, lubrication system, and often the initial charge of grinding media. The difference between a low-cost offering and a high-value investment often lies in the quality of these critical components.

Beyond the Mill: What Ancillary Equipment Is Needed for an Efficient Lithium Grinding Circuit?

The ball mill works as part of a system. Without the right support equipment, it cannot perform efficiently.

An efficient lithium ore grinding circuit is a closed loop. It requires a vibrating feeder for controlled feeding, slurry pumps, and a hydrocyclone cluster for classification. The hydrocyclones are critical for separating fine, liberated particles from coarse particles, which are returned to the mill for more grinding. This closed-circuit setup is essential for controlling the final particle size and preventing over-grinding.

This integrated system ensures that the mill operates at its peak efficiency. The performance of the hydrocyclones, in particular, is directly linked to the lithium recovery rate. A poorly configured cyclone will either send coarse, un-liberated particles to flotation (losing recovery) or send fine, liberated particles back to the mill to be over-ground into slimes (also losing recovery).

How to Get a Precise Technical Solution and Quotation Based on Your Ore and Capacity?

Every lithium deposit is unique. A generic solution is a recipe for failure.

To receive a precise technical solution and an accurate ball mill price, you must provide your supplier with key project data. This includes a representative ore sample for testing, the target throughput in tons per hour, the required final particle size (e.g., P80 of 150 microns), and any specific requirements for purity.
At ZONEDING, we do not sell off-the-shelf machines; we engineer solutions. Our process begins with understanding your ore’s specific characteristics (like its Bond Work Index) and your project’s financial goals. Based on this data, our engineers will design the most efficient spodumene ball mill and grinding circuit to maximize your lithium recovery rate and provide the best long-term return on your investment.

Conclusion

The “price” of a spodumene ball mill is a short-term number, but the “cost” is measured over the life of the mine in your lithium recovery rate. By focusing on features that prevent over-grinding and contamination, you are not just buying a machine; you are investing in the profitability and success of your entire lithium processing plant.
