What Is a Sand Washing Machine?

A Sand Washing Machine, often called a sand washer, is a piece of aggregate washing equipment used in quarries, mines, and recycling operations. Think of it as a specialized, heavy-duty dishwasher for sand. Its main job is to scrub and rinse sand with water to get rid of harmful materials. The clean, graded sand that comes out is perfect for high-specification applications, ensuring the strength and durability of construction projects. This sand cleaning machine is a critical step for producing certified construction sand.

What are Applications of Sand Washing Machine?

The primary application is in the construction industry for producing concrete and asphalt sand. It’s also vital in glass manufacturing, where silica sand must be extremely pure. Other key applications include:

• Quarry and Aggregate Production: To wash crushed stone sand and natural sand.
• Concrete Batching Plants: To ensure the sand meets the quality standards for strong concrete.
• Mining Operations: To separate valuable minerals from sand and soil.
• Frac Sand Production: To produce clean, uniform sand for the oil and gas industry.

What is the Role of a Sand Washer in a Complete Sand Production Plant?

In a complete sand wash plant, the sand washer plays the crucial role of quality control. The process typically starts with crushing large rocks, followed by screening to separate materials by size. The sand that comes from the screening plant is often still mixed with fine dust, clay, and silt. The sand washing machine is placed after the screening stage. It takes this raw feed and performs the final cleaning step, ensuring the product is ready for dewatering and stockpiling. Without this stage, the entire production line would yield a low-quality, less valuable product.

What Is Structure of Sand Washing Machine?

The sand washer adopts a wheel structure and consists of a feeding part, a transmission device, an impeller, a bearing, and a water tank.

Its power depends on models and how many impellers you use. Its types include single-wheel, double-wheel, and three-wheel, and there is no mobile type. The larger the impeller diameter, the higher the efficiency.

The structure of a sand washing machine is simple and robust, designed for tough working conditions. The main components include:

• The Tank or Trough: This holds the water and the sand slurry during the washing process.
• The Washing Mechanism: This is either a large rotating wheel with buckets (Wheel Sand Washer) or a rotating screw (Spiral Sand Washing Machine). This part agitates the material and lifts the clean sand out.
• The Drive System: An electric motor and gearbox power the rotation of the wheel or spiral.
• Water Inlets and Outlets: Ports for fresh water to enter and for dirty water (carrying away the waste) to exit.
• Discharge Chute: Where the clean, washed sand exits the machine.

The rotor adopts a central structure. The spiral blade is installed on the main shaft and connected to the reducer to work. The impeller drives the bearing device to isolate the bearing from water and materials, ensuring that the finished product is not contaminated and effectively improving the cleaning effect.

Why Do You Need Sand Washing Machine?

You need a sand washing machine to turn a basic raw material into a valuable, specified product. Unwashed sand, full of clay and silt, creates weak spots in concrete, requires more cement to achieve strength, and can cause projects to fail inspection. By investing in a sand washer, you can guarantee your product meets industry specifications like ASTM C33. This not only allows you to sell your sand at a much higher price but also builds your reputation as a provider of quality materials, opening doors to larger and more profitable projects.

Sand Washing Machine Working Principle

1.The motor drives the impeller to rotate slowly through the V-belt, reducer, and gear reduction.
2.Sand and gravel enter the washing tank through the feed chute and roll under the impeller’s action, grinding against each other to remove impurities covering their 3.surfaces. This process also breaks the water vapor layer coating the sand grains, facilitating dehydration.
4.Water is added to create a strong current that carries away impurities and lightweight foreign objects in a timely manner, discharging them through the overflow outlet of the washing tank.
5.The clean sand and gravel are then taken away by the blades and finally poured into the discharge chute from the rotating impeller, completing the sand and gravel washing process.

Sand Washing Machines

A bucket-type sand washer is also widely used in sand washing plants, and it is mainly used to washing away soil and dust. Its main parts are the feeding part, driving device, impeller, water tank. The raw sand firstly enters the washing tank through the feeding port, then being rolled and ground by the rotating impellers to be purified.

The power of the sand washing machine depends on models and how many impellers you use. The larger the impeller diameter, the higher the efficiency.

How Does a Sand Washer Work to Remove Clay, Silt, and Dust?

The sand washing process uses water and agitation to separate particles by weight. First, the raw sand feed is mixed with water and fed into the washer’s tank, creating a slurry. The rotating wheel or spiral vigorously churns this mixture. The heavy, desirable sand particles sink to the bottom of the tank. The lighter, unwanted particles like clay, silt, and dust get suspended in the water. This dirty water then flows over a weir and out of the machine, taking the contaminants with it. Meanwhile, the clean sand is scooped up by the buckets or pushed up the incline by the screw and discharged, ready for the next stage.

What are the Benefits of Using Sand Washing Machine?

Using a sand washer offers significant benefits that directly impact your bottom line. The most obvious benefit is the improved quality of your sand, leading to higher strength in concrete and asphalt. This allows you to command a higher price for your product. Beyond that, a sand wash process can help you create valuable byproducts. Don’t just discard the “waste” slurry. This slurry often contains fine aggregates or minerals. With a recovery system, you can separate these materials, creating an additional revenue stream and reducing waste disposal costs, making your entire quarry wash plant more sustainable and profitable.

What are the Different Types of Sand Washing Machines?

There are two main types of sand washers, and the right choice depends on your specific material and goals.

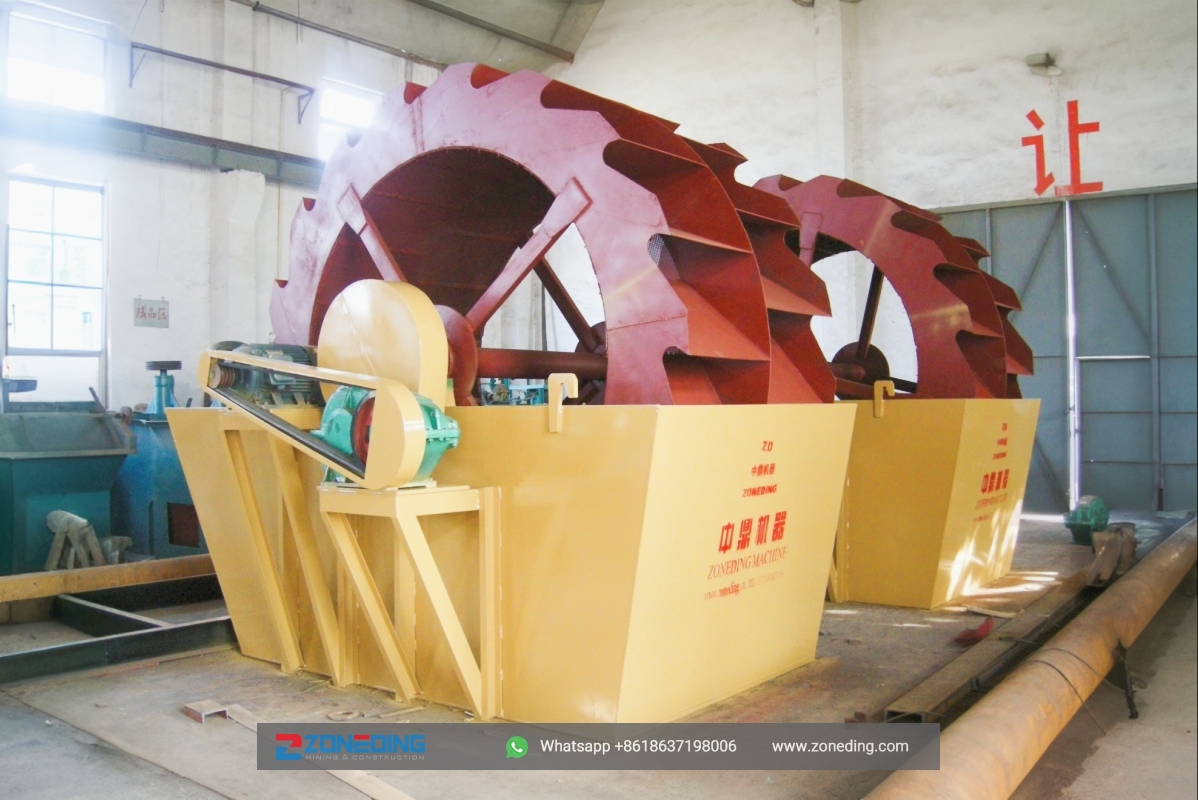

• Wheel Sand Washer: This type uses a large, rotating wheel fitted with buckets. The buckets scoop up the sand from the bottom of the tank, allowing water to drain out as they lift the sand to the discharge point. They are known for their high efficiency, lower water consumption, and minimal loss of fine sand.
• Spiral Sand Washing Machine: This type, also called a screw washer, uses one or two large, rotating screws inside an inclined trough. The screw agitates the material and pushes the clean sand uphill to the discharge end while dirty water flows out the lower end. They are excellent for scrubbing very dirty materials with high clay content.

All Kinds of Sand washing machine

Main Features of Sand Washing Machine :

1. Little loss for medium-sized or fine sand and stone powder.
2. Almost no easily-damaged parts.
3. Long working life.
4. Easy maintenance.

Main Features of Spiral Sand Washing Machine :

1. High level cleaning and reasonable structure.
2. Large capacity and small power consumption.
3. Small loss of sand during the process of sand washing.

What are Differences Between a Wheel and a Spiral Sand Washer?

While both machines clean sand, their design leads to key differences in performance and application. Understanding these is crucial for selecting the right sand washer machine. For a Spiral Sand Washer, a critical technical detail is the angle and pitch of the screw. A steeper angle moves sand faster for higher throughput, while a shallower angle increases the scrubbing and cleaning time, which is better for removing stubborn clay. This adjustability makes them versatile. Wheel Sand Washers, on the other hand, are generally better at retaining fine sand, which can be a significant economic advantage.

Feature	Wheel Sand Washer	Spiral Sand Washing Machine
Fine Sand Loss	Lower; better at retaining fine particles.	Higher; can lose more fines with the overflow water.
Water Consumption	Generally lower.	Generally higher.
Cleaning Ability	Good for general cleaning.	Excellent for heavy-duty scrubbing of sticky clay.
Footprint	More compact.	Longer and requires more space.
Maintenance	Simpler; fewer wear parts.	More complex; screw flights are major wear parts.
Capacity	Suitable for small to large capacities.	Typically used for medium to very large capacities.

How Much Cost of Sand Washing Machine Price?

The price of a sand washing machine can range from $5,000 for a small, simple unit to over $100,000 for a large-capacity, high-tech sand washing plant. The cost depends heavily on the type, size, capacity, and manufacturer. However, the initial purchase price is just one part of the equation. You must also consider the Total Cost of Ownership (TCO). Water consumption is a major operating cost. Investing in a machine with a water recycling system might cost more upfront, but the long-term savings in water and disposal fees can be substantial, making it a smarter financial decision.

What Key Factors Should I Consider Before Buying a Sand Washer?

Choosing the right sand washing equipment is a critical decision. Many operators make the costly mistake of focusing only on tons per hour. However, the type of contamination is just as important. Before you buy, consider these factors:

1. Material Analysis: Test your sand to understand the percentage and type of clay, silt, or other contaminants. This will determine if you need a gentle rinse or an aggressive scrub.
2. Capacity Needs: Determine the tons per hour your operation requires, but don’t oversize the machine unnecessarily, as this wastes water and power.
3. Water Availability and Quality: A key factor that is often ignored is your water source. Water with high clay content will just recirculate dirt. Test your water and plan for pre-treatment if needed.
4. Fine Sand Recovery: How much fine sand can you afford to lose? If fines are valuable, a Wheel Sand Washer or a system with a dewatering screen is a better choice.

What Maintenance Does a Sand Washer Require?

Proper maintenance is crucial for the long-term performance of your sand washer. Because it operates in a wet, abrasive environment, neglect can lead to rapid wear and costly breakdowns. Your maintenance schedule should include:

• Daily Checks: Look for loose bolts, listen for unusual noises, and check that water is flowing correctly.
• Weekly Checks: Inspect high-wear parts like the screen mesh on wheel washer buckets or the edges of spiral flights. Check seals for leaks.
• Lubrication: This is critical. The bearings, gears, and drive systems are constantly exposed to water and grit. Follow a strict lubrication schedule using high-quality, water-resistant grease to prevent premature failure.

Why Choose a ZONEDING Sand Washing Machine Features?

When you choose a sand washer from ZONEDING, you are investing in decades of experience and robust engineering. Since our founding in 1990, we have perfected our designs for maximum efficiency and durability. Our machines are built with high-wear-resistant materials to ensure a long service life even in the harshest conditions. As a factory-direct manufacturer, we eliminate the middleman, offering you superior equipment at a more competitive price. We offer both Wheel and Spiral Sand Washing Machines, and our expert engineers can help you customize a complete sand washing plant solution that fits your exact needs and budget.
