Hammer Crusher Price 2025: Comprehensive Guide

Planning a crushing project means establishing a budget. But focusing only on the initial hammer crusher price is a common and costly mistake. The number on the quote is just the starting point of the total investment.

The hammer crusher cost is not a fixed price; it is a range determined by the machine’s duty class, component quality, and motor size. For 2025, budget from $8,000 for a small unit to over $900,000 for a heavy-duty primary model, excluding essential auxiliary equipment.

A hammer crusher’s simplicity is deceptive. The price of the main unit is merely a down payment. The real crusher machine price includes the drive system, support structure, and, most importantly, the long-term operational costs dictated by wear parts. This guide provides the complete framework for building a realistic procurement budget.

Before asking for a quote, why must professional manufacturers understand your material and capacity needs?

It can seem like a hurdle when a request for a price is met with a list of questions. This isn’t a sales delay; it’s a critical diagnostic process to ensure the machine specified will not fail prematurely.

A professional crusher manufacturer must understand the material and production goals to engineer a durable machine. A hammer mill price quoted without this data is a guess that puts the entire operation at risk.

A manufacturer’s questions are designed to protect the buyer’s investment. Key factors like hardness, abrasiveness, and moisture content have a massive impact on the machine’s design and longevity. For example, limestone with a high silica content is far more abrasive than pure limestone and requires different, more expensive hammer metallurgy to be processed economically. Similarly, the required capacity and the size reduction ratio directly determine the physical size of the crusher, the power of its motor, and the internal configuration of its grate bars. Providing this information is the first step to getting a machine that works.

What parts should a complete hammer crusher quotation normally include?

An attractively low quote can be misleading if it is incomplete. A price for only the “bare machine” can lead to significant, unexpected costs that can break a project budget.

A complete hammer crusher quotation should clearly itemize the core crusher unit, the main drive motor, the support frame or baseplate, couplings, and safety guards. Wear parts, like the initial set of hammers, should also be clearly specified.

A transparent and professional quote allows for accurate budgeting and comparison.

Breakdown of a Complete Quote

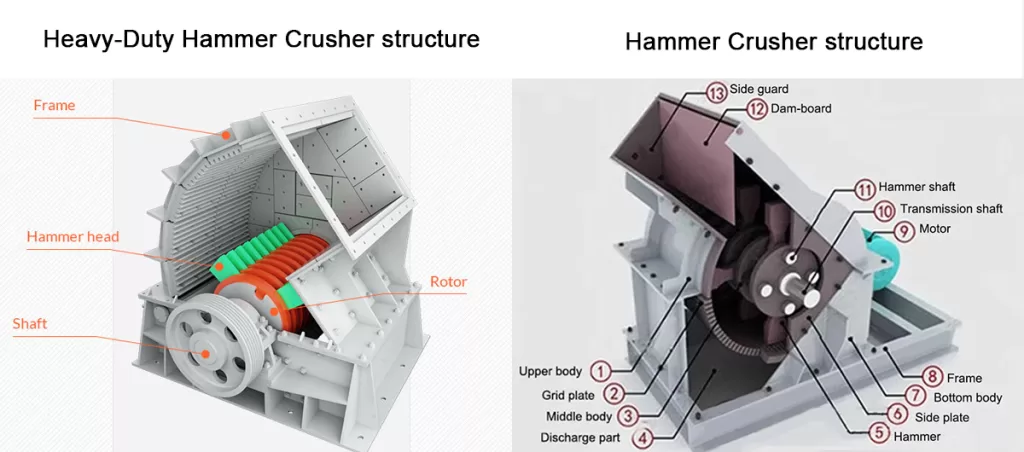

• Crusher Host: This is the core machine. It includes the main housing (frame), the rotor assembly (shaft, discs, hammer pins), a full set of crusher hammers, the internal liner plates, and the discharge grate bars. The materials for each component should be specified.
• Drive System: This package provides the power. It consists of the main electric motor (brand, power rating, and efficiency class are key), the V-belts and pulleys, and the motor mounting bracket that allows for tensioning.
• Structural Components: The crusher needs to be mounted securely. This includes a heavy-duty steel base frame (sometimes called a skid) that supports both the crusher and the motor.
• Ancillaries: Essential for safe operation and integration. This includes safety guards for all rotating parts (pulleys, shafts) and may include standard feed and discharge chute connection flanges.

Why is the price difference so large between heavy-duty (PCZ) and standard (PC) hammer crushers?

It is common to see two hammer crushers with similar listed capacities but with one costing several times more than the other. This isn’t an error; it reflects a fundamental difference in design and application.

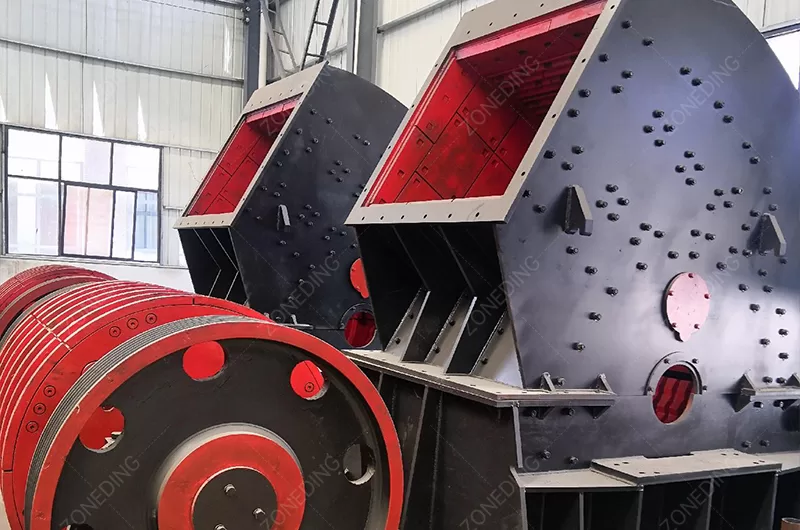

A heavy hammer crusher (PCZ) is significantly more expensive than a standard (PC) model because it is engineered for primary crushing. It features a massive, high-inertia rotor, a much larger feed opening, and a heavily reinforced frame to handle large, blocky material.

The two machine types are built for completely different roles in a crushing circuit.

Standard (PC) vs. Heavy-Duty (PCZ) Comparison

Feature	Standard Hammer Crusher (PC)	Heavy-Duty Hammer Crusher (PCZ)
Application Role	Secondary or Tertiary Crushing	Primary Crushing
Max Feed Size	Smaller (e.g., 200-350 mm)	Very Large (e.g., 800-1200 mm)
Rotor Design	Lighter weight, smaller diameter	Massive, heavy, high-inertia for high impact force
Frame Construction	Standard heavy plate steel	Thicker, internally reinforced steel housing
Budget Impact	Lower initial purchase price	High initial investment
The high cost of a PCZ crusher is often justified because it can perform the work of both a primary jaw crusher and a secondary impact crusher in a single stage for medium-hard materials like limestone. This simplifies the plant layout and can reduce the overall project cost.

How does hammer material directly determine long-term operating costs?

The initial purchase price is the entry fee. The cost of replacing wear parts, especially hammers, is the ongoing subscription that determines the machine’s true lifetime cost.

Hammer metallurgy is the most critical factor in a hammer crusher’s operational budget. Standard high-manganese steel is cheap to buy but wears quickly on abrasive rock, causing expensive downtime. Premium composite hammers cost much more initially but can last 3-5 times longer.

The cost of lost production during a hammer changeout almost always outweighs the cost of the hammers themselves.

Hammer Material vs. Operating Cost

• High-Manganese Steel (Mn13, Mn18): This is the default, lowest-cost option. It is a tough material that hardens under impact. It performs well with low-abrasion materials like coal or clay. However, against abrasive rock (e.g., limestone with silica, sandstone), it wears away very quickly.
• High-Chrome Alloy (Cr-Alloy): This material is harder and more resistant to abrasive wear than manganese steel. It is a good mid-tier choice for moderately abrasive materials, offering a longer wear life at a higher initial cost.
• Composite Ceramic/Alloy Hammers: This is the premium solution for abrasive applications. A tough manganese steel body is fitted with ultra-hard ceramic or tungsten carbide inserts at the main impact points. While a set of these hammers can be very expensive, they drastically reduce the frequency of maintenance shutdowns, making them the most cost-effective choice in high-production settings.

What is the approximate budget range for hammer crushers in different applications?

While a precise quote requires specific data, it is useful to have a general budget range for planning purposes based on the intended application.

For 2025, budget around $18k-$80k for a standard coal crusher, $30k-$350k for a typical limestone crusher depending on size, and $150k-$400k for a heavy-duty crusher for construction waste recycling. These are FOB prices for the crusher unit.

The table below provides estimated ranges.

Estimated Hammer Crusher Price by Application (FOB China, 2025)

Application	Typical Crusher Type	Capacity (t/h)	Motor Power (kW)	Estimated Price Range (USD)
Coal / Coke	Standard (PC Series)	20 – 150	37 – 160	$18,000 – $80,000
Limestone / Dolomite	Med/Lg Duty (PC) & HD (PCZ)	50 – 800	110 – 1000 (x2)	$40,000 – $900,000+
Construction Waste	Heavy-Duty (PCZ)	100 – 500	315 – 450 (x2)	$150,000 – $400,000
Disclaimer: These are order-of-magnitude estimates for the crusher unit only. A complete operational setup with motor, frame, chutes, and controls can add 40-60% to these costs.

To get a precise, trap-free quote, what specific technical parameters should be provided to a supplier?

To move from a budget estimate to a firm, reliable quotation, the supplier needs specific data. Providing comprehensive information upfront ensures the final quote is for a machine that will perform as expected.

To receive an accurate and reliable crusher machine price, provide the supplier with the material type and its characteristics, the maximum feed size, the desired output product size, the required capacity, and the moisture content.

Use this checklist to prepare an inquiry.

Checklist for a Precise Quotation

• Material Details:
  • Type of material (e.g., Limestone, Coal, River Stone, Concrete).
  • Maximum feed size that will enter the crusher (mm).
  • Any known abrasive properties (e.g., % SiO2 content).
  • Typical moisture content (%).
• Performance Requirements:
  • Required capacity in tons per hour (t/h).
  • Desired final product size (e.g., 90% passing 25mm).
• Site Information:
  • Local electrical supply (Voltage and Frequency).

Conclusion

Building a realistic hammer crusher cost budget goes far beyond the price of the bare machine. A smart buyer considers the complete system, specifies wear parts for longevity, and provides clear technical data to a reputable manufacturer like ZONEDING.
