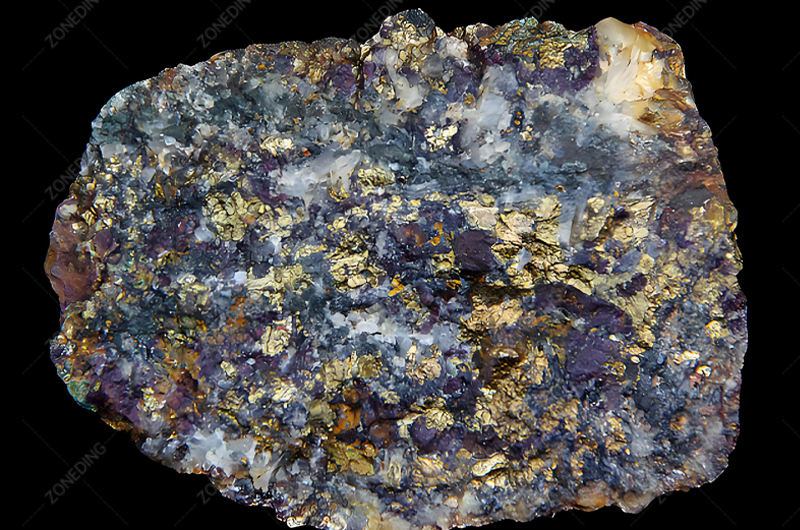

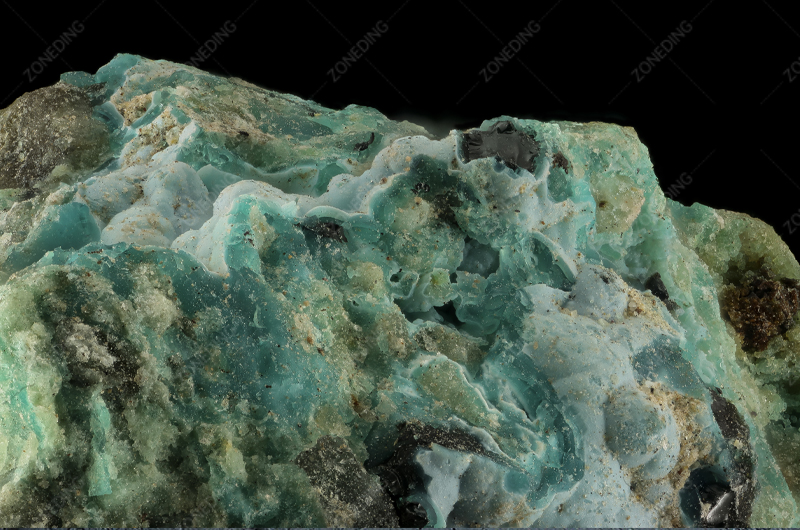

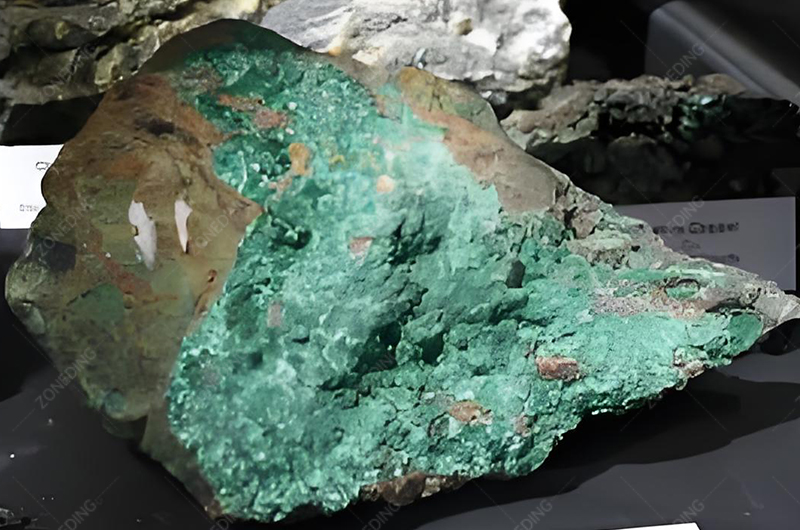

copper ore can be divided into three categories: copper oxide ore(azurite, cuprite and malachite), copper sulfide ore (chalcopyrite, bornite and chalcocite) and natural copper.
Copper ore beneficiation process usually adopts crushing, grinding, gravity separation, flotation, magnetic separation and other methods for separation. The selection of specific copper ore processing plants and equipment is mainly designed according to the different types of copper ore and the needs of customers.
If you are interested in our products, please email us at firstname.lastname@example.org
Copper Beneficiation Process
Even for the same type of copper ore, it is necessary to design the most appropriate process according to local conditions. Copper ore beneficiation is a process to extract copper from raw ores. Commonly used copper ore beneficiation process include gravity separation, flotation process, and magnetic separation.
- Gravity separation: The gravity separation method sorts minerals according to their relative density (usually called specific gravity). Currently, gravity separation is only used to select copper ores with coarser inlays, and is especially suitable for copper oxide ores with higher density.

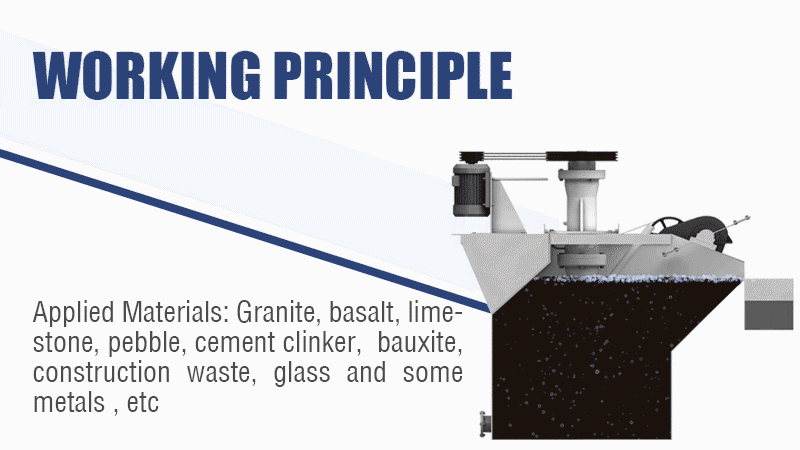

- Flotation separation: Copper flotation process is based on the difference in the physical and chemical properties of the mineral surface, processed by the flotation agent, and the mineral is selectively attached to the bubbles to achieve the purpose of separation. The beneficiation of non-ferrous metal ores, such as copper sulfide ore, lead, zinc, sulfur, molybdenum, etc. is mainly treated by flotation process; some ferrous metals, rare metals, and some non-metallic ores, such as graphite ore, apatite, etc. are also used for the copper flotation process.
- Magnetic separation: The magnetic separation method is based on the different magnetic properties of minerals. Different minerals are subjected to different forces in the magnetic field of the magnetic separator, so as to be sorted. It is mainly used for separating ferrous metal ores (iron, manganese, chromium).
Copper Processing Plant
1. Copper Flotation Process
Zoneding Machine provides a copper flotation plant; the process flow is crushing, grinding, classifying, concentration, drying, and main equipment as follows:
- Jaw crusher

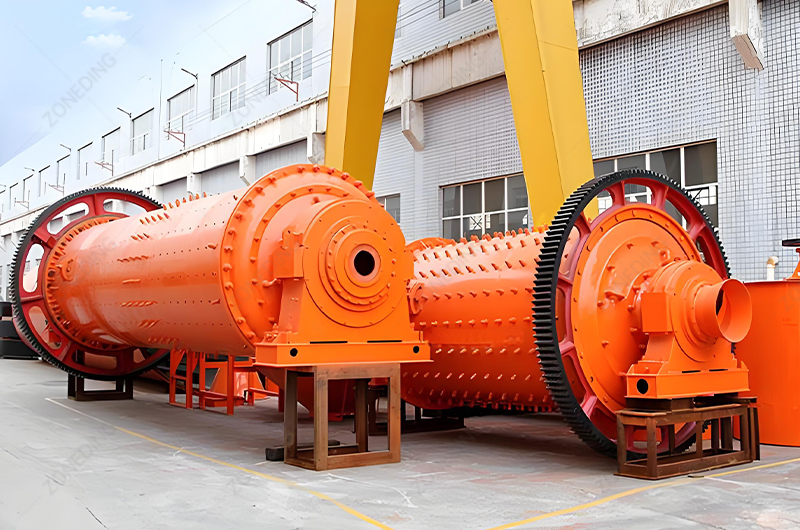

- Ball mill
- Spiral classifier
- Flotation machine
- Mixing tank
- Filtering machine
1. Crushing: Adopts two-stage open-circuit crushing and selects jaw crusher for crushing, and the crushed product is transported to fine jaw crusher for two-stage crushing.
2. Grinding: Afterward, the pendulum feeder is transported to the ball mill for grinding and classification, and combined with the classifier, the material reaches below 200 mesh.
3. Flotation separation: After stirring, the pulp enters the flotation machine, and the collector with good selectivity is added for flotation to obtain qualified copper concentrate.

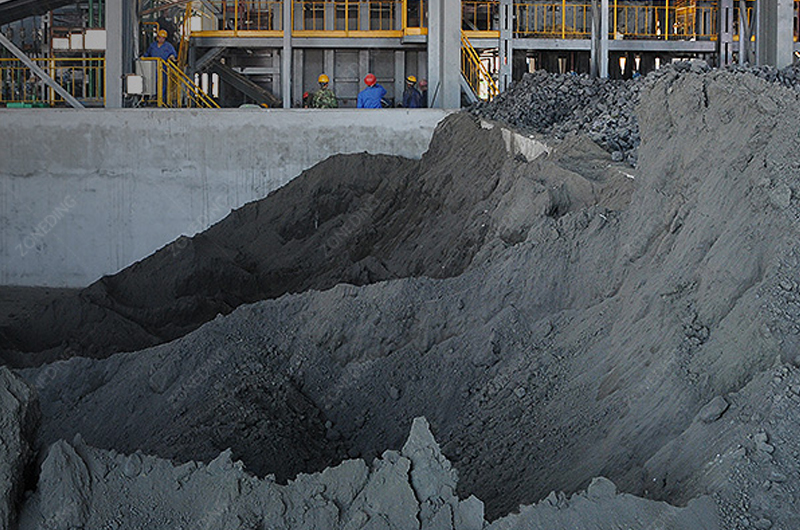

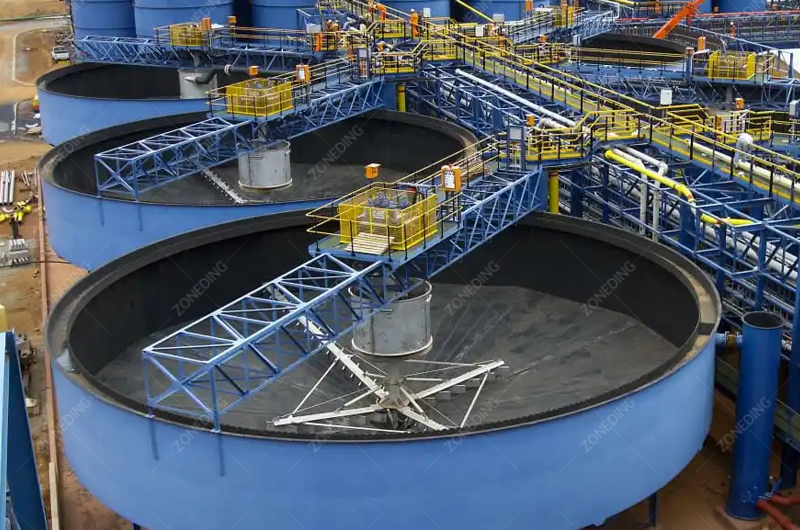

4. Filter & dewatering: The copper concentrate pulp obtained by flotation is transported to a high-efficiency thickener for concentration. Finally, the concentrated bottom flow is filtered and dehydrated by a filtering machine to obtain a qualified concentrate.
Free Flow Design
2. Copper Ore Processing

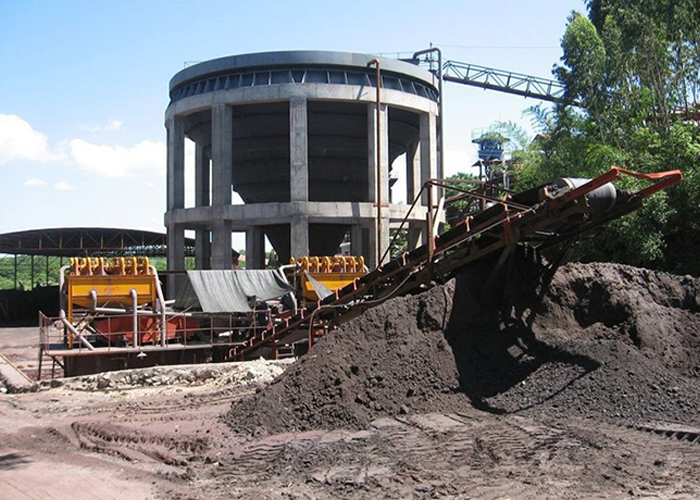

This setup is a complete set rock copper processing plant, including crushing, grinding, gravity separation, drying. Below is copper mining equipment:
- feeding hopper
- chute feeder
- primary jaw crusher
- secondary jaw crusher

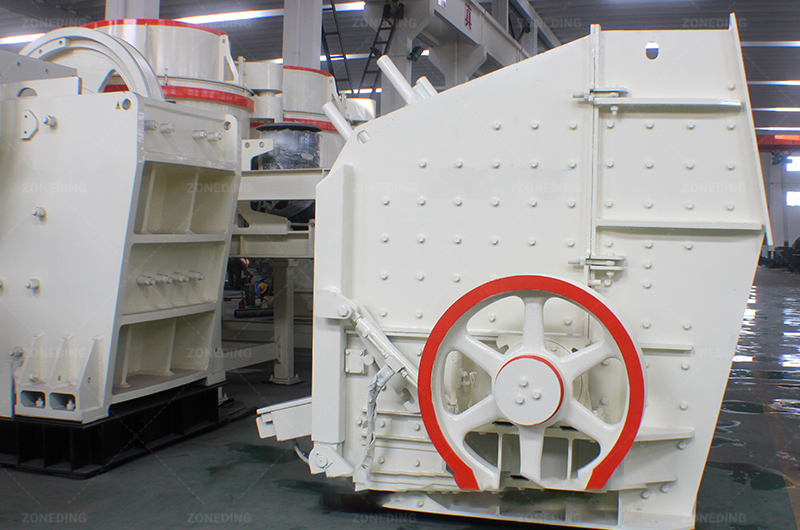

- impact crusher
- ball mill
- spiral chute
- shaking table
- plate filter press
- thickener for tailings
1. Crushing & grinding:The chute feeder is for feeding raw material to primary jaw crusher more stable and smoothly. Primary jaw crusher is for crushing big stone to a smaller size, secondary jaw crusher is for crushing rock to below 30mm, impact fine crusher is for a crush to below 10mm, so as can increase the ball mill’s grinding effect with smaller model saving energy and cost.

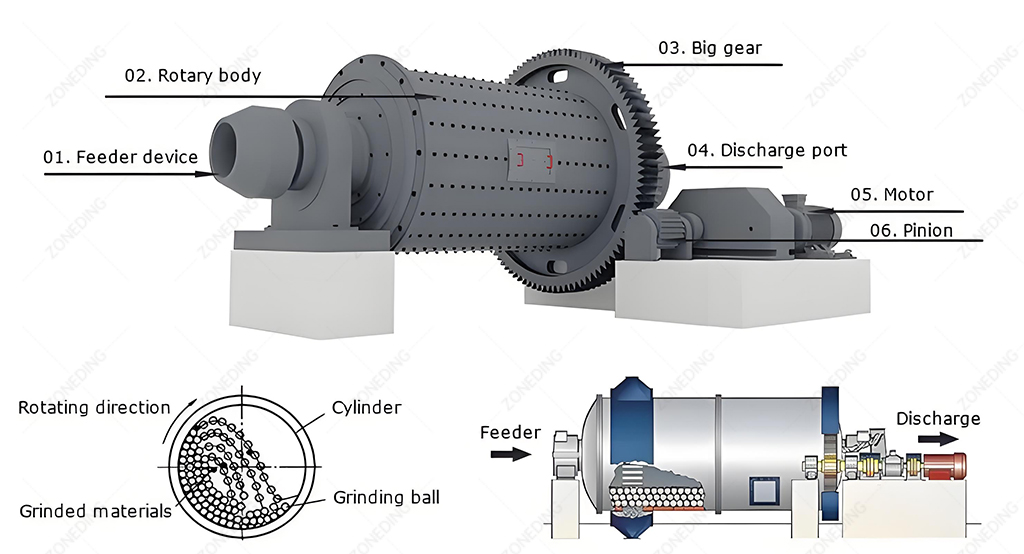

2. Gravity separation:The ball mill is for grinding 0-10mm material to 200mesh working together with cyclone. Then 200mesh slurry will be pumped to two stages spiral chute for primary separation, all heavy mineral concentrate ore from spiral chute will go to shaking table to concentrate again, so as to reach high-grade copper concentrate.

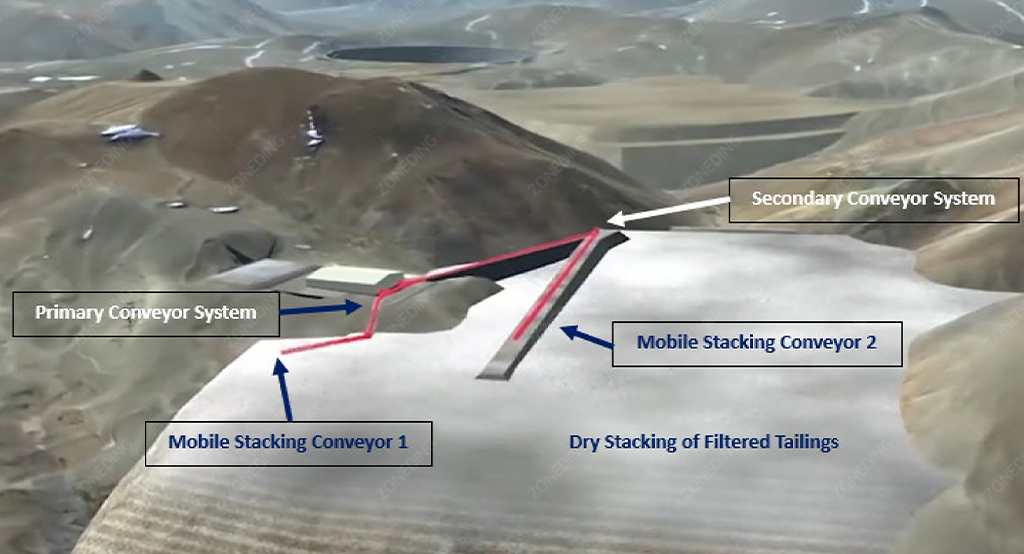

3. Tailings processing: After getting the copper concentrate ore from the shaking table, concentrate ore will be pumped into a thickener to make suitable density concentrate, then go to plate filter press to filter water and get dry copper concentrate At the same time, all the tailing material will go to a cone thickener to make suitable density, then go to a plate filter press to recycle the water to use.
This designed plant is high recovery rate and effect for recovery oxide type rock copper and many other types minerals, such as rock chrome ore, rock manganese ore, rock zinc lead, etc. The plant design can be adjustable according to material conditions and requirements.
