Spiral Classifier vs. Hydrocyclone: Which Is Better?

The selection of Mineral Classification equipment represents a critical decision in mineral processing. Spiral Classifiers and Hydrocyclone Separators are two primary devices in this field. Each device possesses distinct characteristics. Selecting the appropriate equipment requires consideration of ore properties, process objectives, and budget constraints. This article details five core differences. It provides guidance for precise Classification Equipment Selection.

Experience in mineral processing highlights the importance of understanding these devices. Simplified views, such as assuming Spiral Classifiers for coarse grains and Hydrocyclone Separators for fine grains, can lead to suboptimal choices. This article provides a detailed analysis of these two equipment types. It focuses on core differences. This information supports informed decision-making.

Mineral Classification: Its Indispensable Role in the Mineral Processing Flow

Mineral Classification is a fundamental step in most mineral processing operations. It separates a mixture of particles into different size fractions. This ensures that downstream processes receive feed within optimal size ranges. This function is particularly critical in grinding circuits. Here, classification separates adequately ground material from coarser particles. The coarser particles are returned to the mill for further size reduction.

Effective classification directly impacts grinding efficiency. It prevents over-grinding of already fine material. This saves energy. It also reduces wear on grinding media. Proper classification improves recovery rates in subsequent beneficiation stages. For example, flotation or magnetic separation often requires specific particle size distributions for maximum efficiency. Inadequate classification leads to inefficiencies. It increases operational costs. It also reduces overall mineral recovery. Therefore, Mineral Classification is an indispensable component of the mineral processing flow.

Objectives of Mineral Classification

• Optimizing Grinding Circuit Performance: Classification allows coarser particles to be returned to the grinding mill. This ensures efficient utilization of grinding energy.
• Controlling Product Particle Size: It ensures the final product meets specified size requirements. This is crucial for subsequent processing or market specifications.
• Improving Beneficiation Efficiency: Proper sizing of feed to concentration processes enhances mineral liberation and separation.
• Removing Slimes: Classification can effectively separate fine, undesirable slimes. This improves the quality of the main product.
• Reducing Energy Consumption: Preventing over-grinding of fine particles contributes to overall energy savings in the plant.

These objectives highlight the central role of classification. It ensures a balanced and efficient mineral processing operation. Without proper classification, the overall efficiency and economics of the plant would be significantly compromised.

Spiral Classifier: What is its Working Principle and Main Structure?

The Spiral Classifier is a mechanical classification device. It operates primarily on the principle of gravity sedimentation. It separates particles based on their settling velocities in a liquid medium. The main structure consists of a large, inclined trough. A helical spiral conveyor rotates slowly within this trough. Slurry enters the settling pool section of the trough. Coarser, heavier particles settle to the bottom. Finer, lighter particles remain suspended and overflow with the water.

The rotating spiral serves two main functions. First, it agitates the slurry. This helps keep finer particles suspended. Second, it conveys the settled coarse particles (sand) upwards along the inclined trough. As the sand is moved out of the water, it undergoes a dewatering process. This produces a relatively dry underflow product. This mechanism allows the Spiral Classifier to achieve effective separation of coarse material. It also offers good control over the sand product’s moisture content. Its operation is generally stable. It is tolerant to variations in feed concentration.

Main Structural Components

• Inclined Trough: This is the main body of the classifier. It holds the slurry. The angle of inclination affects particle settling and conveying.
• Spiral Mechanism: A large, rotating helical blade. It is mounted on a central shaft. This blade slowly rotates. It pushes settled solids up the incline.
• Lifting Device: A mechanism to raise the spiral. This is for maintenance or when the machine stops to prevent burial.
• Weir or Overflow Lip: Located at the lower end of the trough. This controls the overflow level and thus the particle size cut-point.
• Motor and Reducer: Provides the slow rotational power for the spiral.

The design features allow the Spiral Classifier to handle large volumes of slurry. It effectively separates coarse particles. It produces a clean sand product with low moisture content. This makes it suitable for specific applications in Mineral Classification.

Hydrocyclone: How Does it Achieve Efficient Classification? What are its Structural Characteristics?

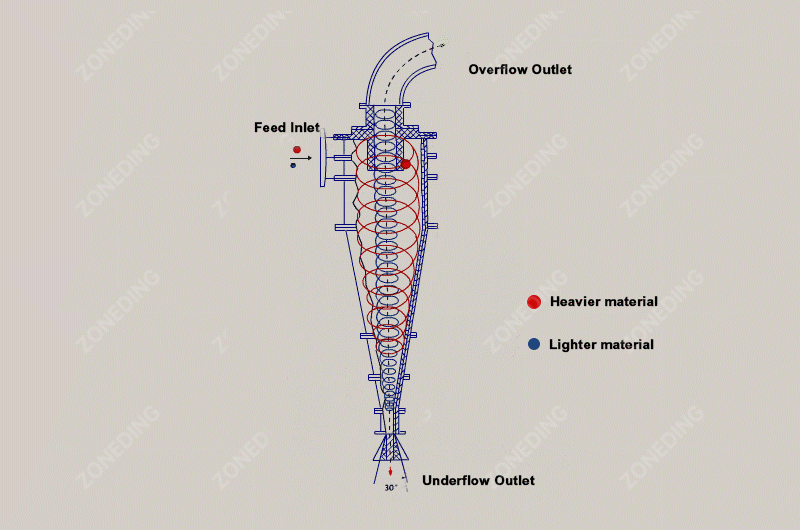

The Hydrocyclone Separator is a hydro-mechanical device. It achieves efficient Mineral Classification primarily through centrifugal force. Slurry is fed tangentially into a cylindrical-conical vessel under pressure. This tangential entry creates a high-speed swirling flow. The denser, coarser particles are forced outwards by centrifugal force. They spiral downwards along the outer wall. These exit through the apex (underflow) opening at the bottom. The lighter, finer particles remain in the central core. They form an inner vortex. This inner vortex spirals upwards and exits through the vortex finder (overflow) at the top.

This high-speed rotational movement provides a strong separating force. It allows for highly efficient separation of fine particles. The classification action is very rapid. It provides a sharp cut-point for fine particle sizes. Its operation requires a pressurized feed. This pressure is typically generated by a pump. The Hydrocyclone Separator is characterized by its compact size. It has a high processing capacity per unit volume. It lacks moving parts. This simplifies its mechanical structure.

Structural Characteristics

• Cylindrical Section: The upper part where slurry is introduced tangentially. It initiates the swirling flow.
• Conical Section: The lower part that gradually tapers. It accelerates the swirling motion. It facilitates the separation of coarser particles.
• Inlet Port: Tangentially placed on the cylindrical section. It introduces the slurry under pressure.
• Vortex Finder: A pipe extending downwards into the cylindrical section from the top. It collects the overflow (finer particles).
• Apex (Underflow Discharge): An opening at the bottom of the conical section. It discharges the underflow (coarser particles).

The design allows the Hydrocyclone Separator to achieve high classification efficiency. It handles a wide range of feed slurries. It is particularly effective for fine particle separation. Its compact structure and lack of moving parts contribute to its popularity in modern Mineral Classification circuits.

Core Difference One: Classification Particle Size Range and Precision

The classification particle size range and precision represent a primary distinction between Spiral Classifiers and Hydrocyclone Separators. This difference arises from their fundamental operating principles. Each device is optimized for distinct particle size fractions. Misapplication based on particle size can lead to significant operational inefficiencies.

Spiral Classifiers operate based on gravity sedimentation. They are effective for coarser particle sizes. This classification mechanism allows particles to settle slowly in the slurry. They separate efficiently in the range typically greater than 0.074mm. They can handle particles even larger than 0.5mm. The overflow usually contains fine slimes. The sand product returned to the mill is relatively clean. The classifier tolerates fluctuations in feed particle size.

Hydrocyclone Separators utilize centrifugal force. This force creates a much stronger separating action than gravity. This equipment excels at fine particle separation, effectively handling sizes typically smaller than 0.2mm, and can classify particles down to 0.02mm or even finer.The classification cut-point of a Hydrocyclone Separator is generally sharper for these fine particles.

Impact of Particle Size Range on Selection

• Spiral Classifier Application: When the primary objective involves returning coarse particles from a grinding mill discharge. When a relatively dry sand product is desired. When the feed contains a high proportion of coarse material. A Spiral Classifier is a stable choice. Its ability to effectively return coarse grains for regrinding is a key advantage.
• Hydrocyclone Separator Application: When efficient separation of fine particles is required. This method is particularly suitable if desliming operations are required, or when aiming to achieve higher grinding efficiency through precise fine particle classification, or when strict control over the overflow product particle size is critical.The Hydrocyclone Separator offers superior performance.

Using a Spiral Classifier for overly fine material results in poor classification efficiency. Many fine particles return to the mill. This causes over-grinding. It burdens the mill. Conversely, using a Hydrocyclone Separator for overly coarse material leads to coarse particles in the overflow. It also causes severe wear on the apex. Blockages become frequent. Classification accuracy decreases. Therefore, matching the equipment to the target particle size range is crucial for optimal Mineral Classification.

Core Difference Two: Processing Capacity, Footprint, and Equipment Volume

Processing capacity, physical footprint, and equipment volume represent significant distinguishing characteristics between Spiral Classifiers and Hydrocyclone Separators. These factors directly influence plant layout, civil engineering costs, and overall project economics. The choice of equipment type must consider these physical and spatial attributes.

Spiral Classifiers are large machines. They require a substantial footprint. They also demand considerable head space for their inclined trough and spiral mechanism. Their processing capacity for coarse materials is high. However, to increase capacity, the physical dimensions of the device must also increase significantly. This often translates into larger civil engineering costs and extensive plant area requirements. The long, inclined structure means that increasing capacity inevitably leads to increased physical size.

Hydrocyclone Separators are compact devices. They offer a high processing capacity relative to their small individual volume. Multiple hydrocyclones can be installed in parallel within a battery. This significantly increases overall processing capacity. This parallel arrangement requires a much smaller footprint. It also needs less overall volume compared to a Spiral Classifier of equivalent total capacity. This compact design is advantageous for plants with limited space.

Implications for Plant Design and Cost

• Spiral Classifier Considerations: A large footprint contributes to higher civil construction costs. It also restricts flexibility in plant layout. Their processing capacity is primarily determined by their physical size. This limits scalability without increasing the equipment’s dimensions.
• Hydrocyclone Separator Considerations: A small footprint reduces civil construction costs. It offers greater flexibility in plant design. They can be easily added or removed from a battery to adjust capacity. However, they typically require a dedicated high-pressure pump system. This adds to the overall cost and energy demand of the system.

Classification Equipment Selection based on these factors involves a trade-off. If ample space is available and moderate capacity is required, a Spiral Classifier may be a viable option. If space is limited, high capacity for fine material is needed, and the additional cost of a pump system is acceptable, a Hydrocyclone Separator battery is often the preferred choice. This core difference profoundly impacts the capital expenditure and layout of the entire Mineral Processing Equipment plant.

Core Difference Three: Energy Consumption, Wear, and Operating Maintenance Costs

Energy consumption, wear characteristics, and subsequent operating maintenance costs represent another core difference. These factors directly impact the long-term economic viability of the chosen classification equipment. Careful evaluation of these aspects is essential for sustainable operation.

Spiral Classifiers operate at low speeds. The relative movement between slurry and equipment components is slow. This results in comparatively low wear on internal parts. The primary wear component is the spiral blade. Replacement is relatively simple. The service life of these blades is long. Overall energy consumption is generally lower due to mechanical movement rather than high-pressure pumping. However, if major components like the main bearing or gearbox fail, repair costs can be substantial. The need for less frequent parts replacement reduces maintenance labor.

Hydrocyclone Separators involve high-velocity fluid rotation within their interior. This causes severe erosive wear on the internal surfaces. The apex (underflow opening) and vortex finder (overflow pipe) are major wear parts. These components require regular inspection and frequent replacement. Failure to do so significantly compromises classification efficiency. While individual wear parts may be inexpensive, their frequent replacement accumulates into a considerable operating cost. High-pressure pump systems are necessary for their operation. These pumps contribute significantly to overall energy consumption. This often makes the Hydrocyclone Separator system more energy-intensive than a Spiral Classifier.

Economic Impact on Operations

• Spiral Classifier Maintenance: Lower spare parts cost and longer maintenance cycles. This leads to reduced downtime. The simplicity of the mechanism translates to less complex maintenance procedures.
• Hydrocyclone Separator Maintenance: Higher wear parts cost due to frequent replacement of rubber or polyurethane liners, apex, and vortex finder. A robust spare parts management system is necessary. The equipment requires more frequent maintenance intervals. This ensures consistent classification performance.

Classification Equipment Selection should align with the maintenance philosophy and budget. If simple, low-frequency maintenance with longer intervals is preferred, a Spiral Classifier may be more suitable. If a plant has a robust spare parts management system and can accommodate more frequent wear part replacements for high-efficiency fine particle separation, the Hydrocyclone Separator provides a more effective solution. The total cost of ownership over the equipment’s lifespan must be considered.

Core Difference Four: Adaptability to Slurry Concentration, Viscosity, and Feed Size Variations

The adaptability to variations in slurry concentration, viscosity, and feed particle size is a critical performance indicator. This factor determines the stability and reliability of the classification process under dynamic operating conditions. Each classification device exhibits different levels of robustness to these fluctuations.

Spiral Classifiers demonstrate higher tolerance to fluctuations in feed conditions. Their gravity-based separation mechanism is less sensitive to changes in slurry concentration and viscosity. The relatively slow, steady operation allows for a more stable classification point. Minor variations in feed flow rate or particle size distribution do not drastically alter its performance. Operators can make manual adjustments by changing spiral speed or weir height. However, these adjustments are relatively slow and have a limited range. This means that while stable, a Spiral Classifier may not respond quickly to significant, rapid changes in ore characteristics.

Hydrocyclone Separators are highly sensitive to variations in feed parameters. Their performance is critically dependent on constant feed pressure, flow rate, and slurry concentration. Changes in these parameters directly impact the centrifugal force. This alters the internal fluid dynamics. Consequently, the classification cut-point and efficiency can fluctuate significantly. For instance, a drop in feed pressure can lead to a coarser overflow. An increase in slurry concentration can cause premature wear or reduced efficiency. Maintaining stable operation often requires precise control of the feed stream.

Operational Implications

• Spiral Classifier Operation: Generally simpler to operate. Once set, it maintains a relatively stable classification point. It is suitable for operations with predictable or slowly changing feed characteristics. However, it lacks the flexibility for rapid adjustments to compensate for large, sudden feed fluctuations.
• Hydrocyclone Separator Operation: Requires a more sophisticated control system. This includes precise monitoring of feed flow, pressure, and density. This ensures stable operation. Without distributed control systems (DCS) or advanced instrumentation, its classification performance can degrade. Frequent blockages of the apex, particularly with variable feed, are common.

Classification Equipment Selection should align with the inherent variability of the ore body and the level of automation desired. If the feed material exhibits high variability, and the operation requires precise, dynamic control, a Hydrocyclone Separator paired with an advanced control system is advantageous. For operations with stable feed and less stringent classification precision requirements, the Spiral Classifier offers simpler and more robust operation.

Core Difference Five: Installation Requirements and Ease of Operation

Installation requirements and ease of operation are practical considerations. These affect the initial setup and ongoing management of Mineral Classification equipment. These factors influence both capital expenditure and operational labor costs.

Spiral Classifiers require a significant inclined installation space. This space must be robust enough to support the large, heavy trough and spiral mechanism. Their installation involves securing the base. It includes positioning the trough at the correct angle. It also involves aligning the spiral drive system. The operation of a Spiral Classifier is relatively straightforward. Once the spiral speed and overflow weir height are set, the device runs continuously. Adjustments are infrequent. They are typically manual. This simplicity makes them user-friendly. Less highly skilled operators can manage them. However, major adjustments or maintenance may require significant downtime due to their size.

Hydrocyclones are compact, requiring minimal floor space, but demand considerable head height for gravity slurry feed and underflow/overflow discharge. A pump station is also essential for feed pressure. Installation involves plumbing slurry lines and ensuring proper pressure/flow to each unit. Operation is complex; the classification point is highly sensitive to feed pressure, concentration, and apex/vortex finder dimensions. This necessitates frequent monitoring and adjustment, often requiring automated control systems, as stable, precise classification is challenging without them.

Impact on Plant Management

• Spiral Classifier Management: Simple operation reduces operator training requirements. Maintenance is generally straightforward. This is due to the low-speed mechanical action. Long intervals between major overhauls are common. This contributes to high availability.
• Hydrocyclone Separator Management: Requires more skilled operators or automated systems for optimal performance. The critical wear parts (apex and vortex finder) need frequent inspection and replacement. This requires a proactive maintenance schedule. Despite their mechanical simplicity, the fluid dynamics require careful management.

The choice of equipment impacts personnel requirements and operational complexity. If a plant seeks simplicity in installation and operation, with less dependency on complex controls, the Spiral Classifier is preferable. If high precision, fine particle separation, and a compact footprint are priorities, and investment in skilled personnel or automation is feasible, the Hydrocyclone Separator is the better choice for Classification Equipment Selection.

Based on Five Core Differences, How to Select the Most Suitable Classification Equipment?

The choice between a Spiral Classifier and a Hydrocyclone Separator depends on specific project needs. No single equipment is universally superior. The “better” equipment is the one that best suits the concentrator’s requirements. This table summarizes when to choose each type of classifier.

Selection Factor	Choose Spiral Classifier	Choose Hydrocyclone Separator
Target Particle Size & Precision	Sorting coarser material (e.g., >0.074mm, even >0.5mm). High efficiency for returning coarse sand. Need for relatively dry underflow. Provides good precision for coarse separation.	Sorting fine material (e.g., <0.2mm, especially <0.02mm or 0.037mm). Offers significantly higher sorting efficiency and product accuracy for fine classification. Requires precise separation for optimal Overflow Fineness.
Space & Processing Capacity	Ample site area is available for larger equipment. Moderate processing capacity is sufficient.	Site area is limited. High processing capacity for fine material is needed. A compact layout is critical.
Energy, Wear & Maintenance Costs	Preference for lower wear parts cost and longer maintenance cycles. Lower overall energy consumption (relative to high-pressure pumps). Simple maintenance requirements.	High classification efficiency justifies higher energy consumption (for pumps). Acceptance of more frequent wear part replacement (apex, vortex finder).
Feed Variability & Control	Feed slurry characteristics are relatively stable. Manual or simple control is preferred. Less sensitive to variations in concentration or viscosity.	Feed slurry characteristics are highly variable. Precise, dynamic control is essential. Investment in automated control systems (DCS) is feasible.
Installation & Operation Ease	Simple installation process is desired. Straightforward operation without complex controls. Less demanding on operator skill.	Complex piping and pump systems are manageable. Skilled operators or automation are available for precise parameter adjustment. Performance is prioritized over installation simplicity.

Customized Classification Solutions: Professional Equipment Selection and Process Optimization Advice

Each mineral processing project presents unique challenges. These include specific ore characteristics, site constraints, and production objectives. Standard, off-the-shelf classification equipment may not always deliver optimal results. Customized classification solutions and expert process optimization advice are often necessary. They maximize efficiency and profitability.

Tailored solutions consider all project-specific factors. This ensures the classification circuit performs optimally. ZONEDING specializes in providing these bespoke services. This includes both equipment selection and comprehensive process optimization.

ZONEDING’s Approach to Customization

1. Comprehensive Analysis: The process begins with a detailed evaluation. This includes ore mineralogy, particle size distribution, slurry rheology, production targets, and site conditions. Laboratory testing and pilot plant trials may be conducted.
2. Tailored Design: Experienced engineers design a classification circuit. This involves selecting the most suitable Spiral Classifiers or Hydrocyclone Separators. It also includes configuring their layout. This ensures optimal flow and efficiency. This design considers specific requirements for Classification Particle Size, Overflow Fineness, and Underflow Concentration.
3. Advanced Technology Integration: Modern features are incorporated. These include automation, real-time monitoring, and energy-saving technologies. This optimizes equipment performance. It enhances operational control.
4. Full-Service Support: ZONEDING provides end-to-end support. This encompasses equipment manufacturing, installation, commissioning, and operator training. Post-sales service ensures long-term operational success. This includes ongoing Mineral Processing Optimization advice.

Benefits of Customized Solutions

• Maximized Efficiency: Equipment and processes are precisely matched to specific needs. This leads to higher throughput and superior classification efficiency.
• Optimized Product Quality: Achieves desired particle size distribution and overflow fineness. This is critical for subsequent beneficiation processes.
• Reduced Operating Costs: Lower energy consumption, extended wear part life, and minimized downtime contribute to significant cost savings.
• Enhanced Reliability: Robust design and precise engineering ensure consistent and dependable performance of the classification circuit.
• Environmental Compliance: Solutions are designed to meet or exceed environmental regulations. This includes water efficiency and waste management.

Partnering with ZONEDING provides access to a dedicated team. This team works to deliver a classification solution perfectly suited to a project. It aims to ensure maximum returns on investment.

Common Questions About Mineral Classification Equipment

Question 1: Why is Mineral Classification critical in mineral processing?

Mineral Classification separates particles by size. It ensures appropriate feed for grinding mills. It also separates finished products. This optimizes grinding efficiency. It improves recovery rates in subsequent beneficiation stages.

Question 2: What is the primary difference in working principle between a Spiral Classifier and a Hydrocyclone Separator?

A Spiral Classifier uses gravity sedimentation and mechanical stirring. It separates coarser particles. A Hydrocyclone Separator uses centrifugal force. It separates finer particles. This is its primary working mechanism.

Question 3: Which equipment is better for processing coarser particles, and why?

The Spiral Classifier is better for coarser particles. It provides high efficiency for sizes typically larger than 0.074mm. Its gravity-based mechanism effectively returns coarse grains for further grinding. It produces a cleaner sand product.

Question 4: What operational factors significantly affect Hydrocyclone Separator performance?

Hydrocyclone Separator performance is highly sensitive. Key factors include feed flow rate, concentration, pressure, and the diameters of the apex and vortex finder. Variations in these parameters cause significant changes in classification results.

Question 5: Can Spiral Classifiers and Hydrocyclone Separators be used together?

Yes, they can be used together. A common configuration involves a Spiral Classifier for initial coarse separation. Its overflow is then fed to a Hydrocyclone Separator for fine classification or desliming. This combines the strengths of both devices.

Summary and Recommendations

The selection of Mineral Classification equipment requires a thorough understanding of the five core differences between Spiral Classifiers and Hydrocyclone Separators. Each device is optimized for specific operating conditions and particle size ranges. Spiral Classifiers are suitable for coarser particles, stable feed, and lower maintenance environments. Hydrocyclone Separators excel in fine particle separation, compact footprints, and high-capacity applications requiring precise control.

The optimal choice is not based on inherent superiority. It depends on matching the equipment’s characteristics with the project’s specific ore properties, production goals, space constraints, and budget. Combining both devices in a hybrid circuit often provides the most flexible and efficient solution for complex Grinding Circuits.

About ZONEDING

ZONEDING has been a leader in mineral processing since 2004. It provides a full range of Beneficiation Equipment and solutions. It serves clients worldwide. ZONEDING specializes in customized classification solutions. Its machines are recognized for reliability, efficiency, and top performance. Full-process support is offered. This encompasses equipment manufacturing, installation, commissioning, and operator training. Post-sales service ensures long-term operational success. This includes ongoing Mineral Processing Optimization advice.

Contact us today. Experts can assist in designing or optimizing any Mineral Classification plant. Maximize mineral value with ZONEDING’s proven technology and experience.
