How to Beneficiate Ferrous Metals?

Raw ferrous metal ore straight from the ground often contains low concentrations of valuable minerals. Processing this low-grade material directly is inefficient and uneconomical. A method is needed to increase the metal content before smelting.

Ferrous metals beneficiation is the process of upgrading ores like iron, manganese, and chrome by removing non-valuable gangue minerals. The most common methods are magnetic separation for magnetite, and gravity separation or flotation for weakly magnetic ores like hematite.

Beneficiation is a critical step that transforms low-grade ore into a high-grade concentrate. This concentrate is the primary raw material for the steel industry. The selection of the correct beneficiation process depends entirely on the mineral composition of the ore.

What Are Ferrous Metals?

Industries require metals with specific properties like strength and magnetism for construction and manufacturing. Not all metals possess these qualities.

Ferrous metals are metals that contain iron as their main component. Their primary characteristics are high strength, durability, and magnetic properties. These qualities make them fundamental materials for global construction, infrastructure, and manufacturing.

The term “ferrous” is derived from the Latin word “ferrum,” which means iron. This group of metals is distinct from non-ferrous metals, which do not contain significant amounts of iron. The presence of carbon in ferrous alloys, like steel, gives them their exceptional hardness and tensile strength. The global steel industry relies almost entirely on the production and processing of ferrous metals.

The Defining Properties of Ferrous Metals

The properties of ferrous metals make them suitable for a wide range of applications.

• Strength and Durability: Ferrous metals are known for their high tensile strength and resistance to wear, making them ideal for structural applications.
• Magnetic Properties: The presence of iron makes most ferrous metals magnetic, a key property for motors, generators, and other electrical equipment.
• Conductivity: They are good conductors of electricity.
• Susceptibility to Rust: A primary disadvantage is their tendency to corrode or rust when exposed to moisture, which often requires protective coatings.

What Metals Are Included in Ferrous Metals?

Many different metals are used in industrial applications, and it can be confusing to categorize them. The classification is based on their primary elemental composition.

Ferrous metals primarily include iron ore and its alloys, such as steel. In the context of minerals processing, the main ferrous ores processed are iron ores like magnetite and hematite, manganese ore, and chrome ore. These are the foundational materials for the steelmaking industry.

While iron is the defining element, other important metals are grouped within this category due to their role in alloying with iron to produce different types of steel.

Key Types of Ferrous Metal Ores

The beneficiation industry focuses on upgrading the ores that are used to produce ferrous metals.

• Iron Ore: This is the most important ferrous metal ore. The main commercial minerals are Magnetite (Fe₃O₄), which is strongly magnetic, and Hematite (Fe₂O₃), which is weakly magnetic. Other types include limonite and siderite.
• Manganese Ore: Manganese is a critical element in steel production. It is used as a deoxidizer and an alloying agent to improve strength and toughness.
• Chrome Ore (Chromite): Chrome is the key ingredient in the production of stainless steel, providing exceptional resistance to corrosion.

What Are the Beneficiation Methods for Different Ferrous Metals?

Different ferrous ores have different physical and chemical properties. A single processing method is not effective for all ore types. The chosen method must match the ore’s characteristics.

The primary beneficiation method for strongly magnetic magnetite ore is weak magnetic separation. For weakly magnetic ores like hematite and manganese, methods include gravity separation, high-intensity magnetic separation, or flotation. Sometimes a combined process is necessary.

The goal of any beneficiation process is to separate the valuable mineral particles from the worthless gangue particles efficiently.

Specific Processes for Key Ores

The selection of equipment depends on the mineralogy.

Ore Type	Key Property	Primary Beneficiation Method	Key Equipment
Magnetite	Strongly Magnetic	Weak Magnetic Separation	Wet drum Magnetic Separator
Hematite	Weakly Magnetic, High Density	Gravity Separation or Flotation	Spiral Chute, Jigging Separator, Flotation Machine
Manganese Ore	High Density, Variable Magnetism	Gravity Separation or High-Intensity Magnetic Separation	Shaking Table, Strong Magnetic Separator
Chrome Ore	Very High Density	Gravity Separation	Spiral Chute, Shaking Table

In many cases, complex ores require a combination of these methods to achieve the target concentrate grade. For instance, a hematite ore might first undergo gravity separation to remove coarse gangue, followed by flotation to recover fine hematite particles.

Crushing and Grinding: How to Determine the Optimal Particle Size to Balance Cost and Recovery?

Crushing and grinding are energy-intensive and costly stages. Grinding too fine wastes electricity, while not grinding fine enough results in poor mineral recovery.

The optimal particle size is determined through liberation analysis. This analysis identifies the exact point at which the maximum amount of valuable mineral is physically liberated from the waste rock (gangue) for the minimum amount of energy consumed. This balances grinding costs with recovery rates.

This balance is the most critical economic factor in designing a grinding circuit.

The Concept of Liberation

Liberation is the core goal of grinding. It is the process of reducing the ore size until the valuable mineral grains are separate from the gangue mineral grains. Without liberation, physical separation is impossible.

• Under-grinding: If the ore is not ground fine enough, valuable minerals remain locked with gangue in composite particles. These composite particles cannot be recovered by separation equipment, leading to a direct loss of metal to the tailings.
• Over-grinding: Grinding finer than the liberation size consumes excessive power, a major operational cost. It also generates ultra-fine “slimes” which are very difficult to recover and can interfere with the efficiency of downstream processes like flotation and dewatering.

A Ball Mill is typically used for this grinding stage. The optimal particle size is found by grinding samples to various fineness levels and then analyzing them microscopically to determine the percentage of liberated minerals. This data is compared against grinding energy costs to find the most profitable operating point.

In Which Industries Are Ferrous Metals Used?

The unique properties of ferrous metals make them essential for modern society. Their strength and durability are unmatched by most other materials.

Ferrous metals are used in a vast range of industries. The most significant applications are in construction for structural beams and rebar, transportation for manufacturing cars and ships, heavy machinery production, and in the energy sector for building pipelines and turbines.

The versatility of steel, the primary product of ferrous metals, allows it to be the backbone of industrial and economic development.

Major Sectors of Application

• Construction: Steel provides the framework for skyscrapers, bridges, stadiums, and residential buildings. Concrete is reinforced with steel rebar.
• Automotive & Transportation: Car bodies, engines, railway tracks, and ship hulls are all manufactured from ferrous metals due to their strength and formability.
• Machinery and Tools: The durability of steel makes it the material of choice for industrial equipment, machine tools, and hand tools.
• Energy and Infrastructure: Power transmission towers, oil and gas pipelines, and wind turbine components rely on the structural integrity of steel.
• Consumer Goods: From kitchen appliances to household containers, the use of ferrous metals is widespread in everyday products.

What Core Equipment Is Needed to Build a 3,000-Ton-Per-Day Iron Ore Beneficiation Plant?

Building an industrial-scale plant requires careful selection of equipment sized for the target capacity. Each stage of the process needs robust and reliable machinery.

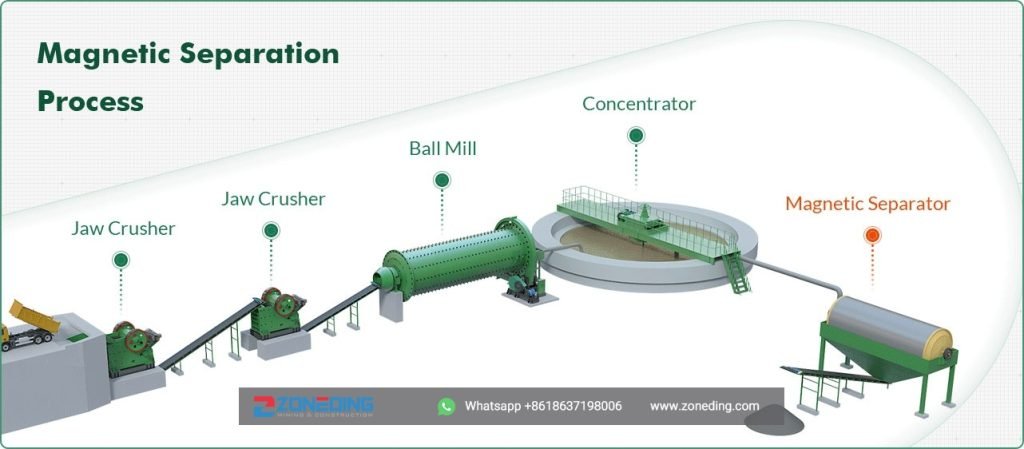

A 3,000 TPD iron ore beneficiation plant requires core equipment including a Vibrating Feeder, Jaw Crusher for primary crushing, Cone Crusher for secondary crushing, a Ball Mill for grinding, and Magnetic Separators for concentration.

This equipment forms a continuous processing line to take raw ore and produce a valuable iron concentrate.

Equipment for Each Process Stage

The plant is divided into distinct functional areas, each with specific machinery.

1. Feeding and Crushing Stage:

• Vibrating Feeder: Provides a controlled feed of raw ore from the stockpile into the crushing circuit.
• Primary Jaw Crusher: Takes the large run-of-mine ore and breaks it down to a manageable size (e.g., <150mm).
• Secondary Cone Crusher: Further reduces the ore size to prepare it for the grinding circuit (e.g., <25mm).
• Vibrating Screen: Classifies the crushed material, sending oversized particles back to the cone crusher and properly sized material to the grinding stage.

2. Grinding and Classification Stage:

• Ball Mill: Grinds the crushed ore with steel balls in a water slurry to liberate the iron mineral particles.
• Spiral Classifier or Hydrocyclone: Works in a closed circuit with the ball mill to separate finely ground particles from coarse ones. Coarse particles are returned to the mill for more grinding.

3. Separation Stage:

• Magnetic Separators: A series of magnetic drum separators are used to extract the magnetic iron minerals from the non-magnetic gangue. Multiple stages (roughing, cleaning, scavenging) are used to maximize grade and recovery.

4. Dewatering Stage:

• Thickener: Removes the majority of the water from the final iron concentrate, allowing it to settle.
• Filter: Removes the remaining water to produce a final concentrate cake that is ready for transport.

Conclusion

Effective ferrous metals beneficiation is a systematic industrial process. It begins with understanding the ore’s properties and concludes with producing a high-grade concentrate suitable for steelmaking. The right technology is key.
