How to Process Copper Ore: A Guide to Methods & Equipment

You’re looking at a mountain of rock that contains copper, but in its raw form, it’s worthless. Building the wrong kind of copper processing plant for your specific ore is the fastest way to lose your entire investment. You need a proven method to turn that rock into a profitable product.

To get a valuable copper concentrate, you must first identify your ore type (sulfide or oxide) and then apply the correct copper ore beneficiation method. For sulfide ores, this is froth flotation; for oxide ores, it is typically a chemical leaching process.

Amateurs think they process “copper ore.” Professionals know that you process specific minerals like chalcopyrite or malachite. The mineralogy of your ore dictates the entire processing plant design. Getting this first step right is the foundation of a successful mining operation. Let’s walk through the process step-by-step.

What are the types of copper ore?

All copper ore looks like rock, but from a processing standpoint, they exist in two completely different universes. Choosing the wrong process for your ore type is a catastrophic and irreversible financial mistake.

The two primary types of copper ore are sulfide copper ore (like Chalcopyrite) and oxide copper ore (like Malachite). They cannot be processed the same way. Sulfide ores are treated with physical separation (flotation), while oxide ores require chemical dissolution (leaching).

Before you buy a single piece of copper processing equipment, you must know which type you have through extensive lab testing. Sulfide ores are the most common source of copper worldwide. The copper is chemically bonded with sulfur. Oxide ores are typically found closer to the surface where original sulfide deposits have been weathered and exposed to air and water. This fundamental difference in chemistry dictates every decision you will make.

Ore Type	Key Mineral Examples	Defining Chemical Property	Primary Processing Method
Sulfide Ore	Chalcopyrite, Bornite, Chalcocite	Does not dissolve in weak acid; surface can be made to repel water.	Froth Flotation
Oxide Ore	Malachite, Azurite, Chrysocolla	Easily dissolves in weak acid (e.g., sulfuric acid).	Hydrometallurgy (Leaching)

What are the beneficiation methods for copper ore?

Now that you know your ore type, you can choose the correct pathway. You can think of it as a fork in the road. One path is a physical process, the other is a chemical one.

The beneficiation method for sulfide ore is Froth Flotation, which creates a copper concentrate. The method for oxide ore is Hydrometallurgy (Leach-SX-EW), which creates pure copper metal sheets. You must select the method that matches your ore’s chemistry.

The goal of copper ore flotation is to physically separate the copper sulfide mineral particles from the waste rock and concentrate them into a high-grade powder (e.g., 25-30% copper) that can be sold to a smelter. The goal of hydrometallurgy is completely different. It uses chemicals to dissolve the copper from the rock into a solution, and then extracts the copper from that solution to produce a 99.99% pure copper metal product on-site. This guide will focus on the more common sulfide flotation method.

Why grind the ore as fine as flour?

The copper minerals are locked inside worthless rock like chocolate chips in a cookie. If you don’t free the valuable particles, you cannot recover them, no matter how sophisticated your downstream equipment is.

Grinding in a Ball Mill is done to achieve “liberation.” This means breaking the ore just fine enough to physically detach the copper sulfide mineral grains from the surrounding waste rock (gangue). Without liberation, flotation is impossible.

The grinding and classification circuit is the biggest consumer of power in a beneficiation plant, so getting it right is crucial for controlling your beneficiation cost. Over-grinding is a cardinal sin. It wastes massive amounts of energy and creates ultra-fine “slimes” that are extremely difficult to float, lowering your recovery rate. Under-grinding is just as bad; the copper remains locked to the waste and is lost to the tailings. A mineralogist must determine the optimal grind size for your specific ore, which then dictates the design of your grinding circuit.

How to choose the right flotation method for different copper ores?

You have a slurry of finely ground sulfide ore. Just adding it to water and bubbling air through it will not work. You need to use a chemical trick to make only the copper particles float.

An effective copper ore flotation process relies on a specific chemical “recipe” and a multi-stage circuit. Reagents make the copper particles water-repellent, and a Rougher-Scavenger-Cleaner circuit ensures both high recovery and high concentrate grade.

The Flotation Machine is just a vessel; the real magic is in the chemistry.

1. pH Modifier (Lime): This is added to raise the pH. Its most important job is to “depress” pyrite (fool’s gold), preventing it from floating and contaminating your concentrate.
2. Collector (Xanthates): This chemical selectively coats the copper sulfide particles, making them hydrophobic (water-repellent).
3. Frother (MIBC): This chemical stabilizes the air bubbles, creating a froth that can carry the copper particles to the surface.

This process is always done in stages:

• Roughers: The first stage, designed for maximum recovery rate.
• Scavengers: Treat the rougher tailings to catch any missed copper.
• Cleaners: Treat the rougher concentrate to reject any remaining waste and achieve the final target grade for the copper concentrate.

How to “dewater” the copper concentrate?

Your flotation process has created a valuable slurry, but it is mostly water. You cannot ship or sell this slurry. You are paid for the copper, not the water, and high moisture content results in penalties.

Dewatering the copper concentrate is a two-step process. First, a Thickener uses gravity to remove the bulk of the water. Second, a Filter Press mechanically squeezes the remaining water out to create a shippable solid cake.

First, the concentrate slurry is pumped to a large, circular tank called a Thickener. The solid particles slowly settle to the bottom, forming a thicker pulp. Clear water overflows from the top and is recycled back into the plant. This thickened underflow is then pumped to a Filter Press. This machine forces the slurry between powerful plates, squeezing the water out and leaving behind a final concentrate cake with low moisture content, ready for bagging and transport to a smelter.

What core equipment is needed for a complete copper concentrator?

You understand the theory, but what specific machines do you need to build a complete copper processing flowsheet? A successful plant is a chain of reliable equipment, with each machine performing a critical task.

A standard sulfide copper concentrator requires a sequence of core equipment: Jaw Crushers and Cone Crushers for crushing, a Ball Mill for grinding, Flotation Machines for separation, and a Thickener and Filter Press for dewatering.

Here is the essential equipment list, organized by process stage. Each step prepares the material for the next, forming an integrated and efficient system.

Process Stage	Core Equipment	Primary Function

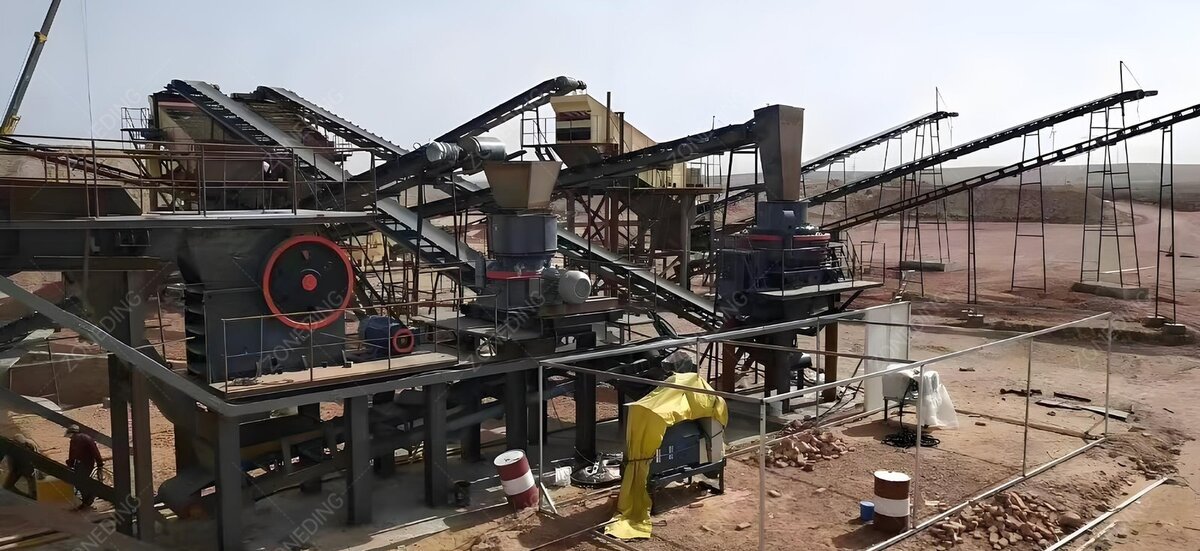

Crushing and Screening	Jaw Crusher, Cone Crusher, Vibrating Screen	To reduce large run-of-mine rocks to a manageable size (e.g., -15mm) for the grinding circuit.
Grinding and Classification	Ball Mill, Spiral Classifier / Hydrocyclone	To grind the crushed ore to the target liberation size and classify the particles.
Copper Ore Flotation	Flotation Machines, Mixing Tanks	To selectively separate the copper sulfide minerals from the gangue using reagents and air bubbles.
Dewatering	Thickener, Filter Press	To remove water from the final concentrate to produce a low-moisture, transportable solid cake.

Conclusion

Building a profitable copper plant starts with one thing: understanding your ore. First, determine if it is sulfide or oxide. Then, design the correct process and select robust, reliable equipment for each critical stage, from crushing to the final concentrate dewatering.
